CY7C68013A-128AXC
Full Speed/High Speed USB Peripheral Controller USB 1.1/USB 2.0 3.3V Tray 128-Pin TQFP
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CY7C68013A-128AXC by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

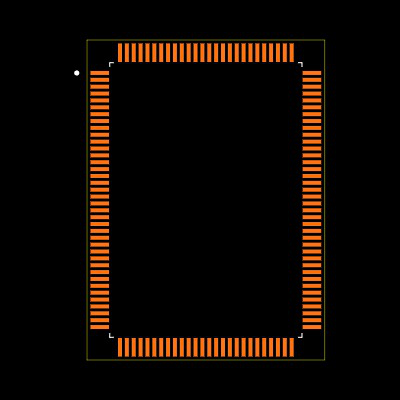

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CY7C68013A-128AXC
| Part Name | CY7C68013A-128AXC |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 20 x 14 x 1.4 (mm) |
| Mounting Type | Surface Mount |
| Esd Protection | Yes |
| Power Supply Type | Single |
| Protocols Supported | USB 1.1, USB 2.0 |
| Data Rate | 480 (Mbps) |
| Length | 20 (mm) |
| Height | 1.4 (mm) |
| Width | 14 (mm) |
| Typical Single Supply Voltage (V) | 3.3 V |
| Package Type | TQFP |
| Minimum Operating Temperature | 0 °C |
| Ic Type | Controller IC |
| Maximum Operating Temperature | +75 °C |
| Number Of Transceivers | 1 |
| Pin Count | 128 |
No issues have been reported for the CY7C68013A-128AXC
If you experienced any issues with the symbol or footprint, please report it.
