CY8C5888AXI-LP096

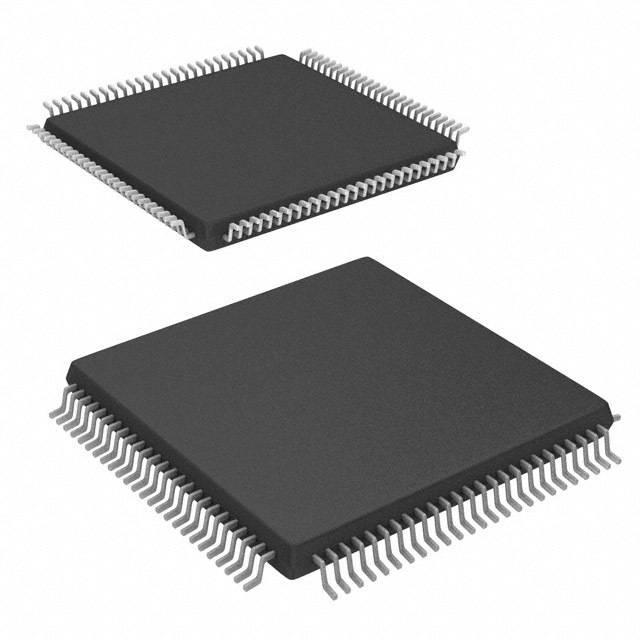

ARM® Cortex®-M3 PSOC™ 5 CY8C58LP Microcontroller IC 32-Bit Single-Core 80MHz 256KB (256K x 8) FLASH 100-TQFP (14x14)
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CY8C5888AXI-LP096 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

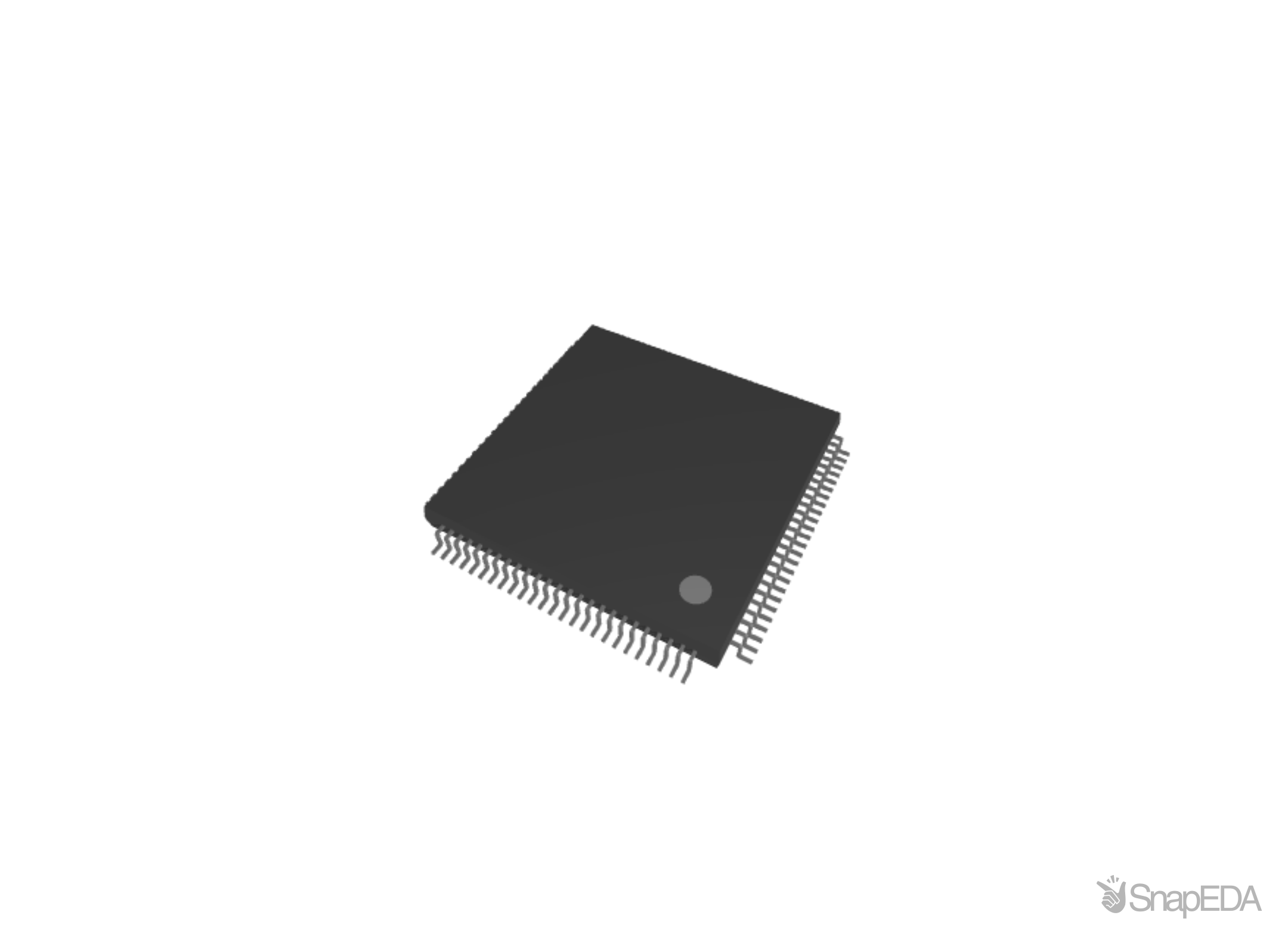

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CY8C5888AXI-LP096
| Part Name | CY8C5888AXI-LP096 |
| Manufacturer | Infineon / Cypress |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 14 x 14 x 1.4 (mm) |
| Usb Channels | 1 |
| Width | 14 (mm) |
| Program Memory Size | 256 kB |
| Data Bus Width | 32 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | TQFP |
| Maximum Frequency | 80 (MHz) |
| Number Of Pwm Units | 0 |
| Number Of Adc Units | 2 |
| Maximum Operating Temperature | +85 °C |
| Adcs | 3 x 12/20 bit |
| Family Name | CY8C58LP |
| Device Core | ARM Cortex M3 |
| Length | 14 (mm) |
| Ram Size | 64 kB |
| Pin Count | 100 |
| Mounting Type | Surface Mount |
| Height | 1.4 (mm) |
| Typical Operating Supply Voltage (V) | 1.8 V, 2.5 V, 3.3 V, 5 V |
| Minimum Operating Temperature | -40 °C |
