D-150-C-14

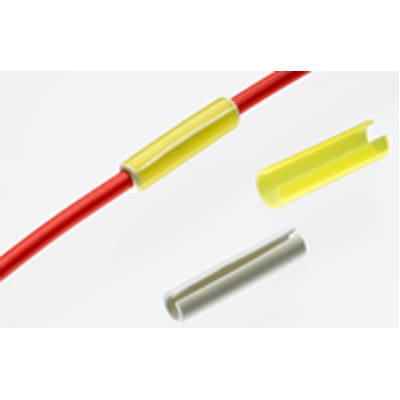

Raychem, RepairSleeve, HeatShrink, 4.8mmID, 14-12AWG, yellow, 150DegC | TE Connectivity D-150-C-14
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the D-150-C-14 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the D-150-C-14
| Part Name | D-150-C-14 |
| Manufacturer | TE Connectivity |
| Category | Wire & Cable |
| Product Type | Heat Shrink Repair Sleeve |
| Operating Temperature Range | -65 – 150 |
| Color | Yellow |
| Adhesive Inside Diameter | 3.34 |
| TE Internal Number | CX2098-000 |
| Sleeve Inside Diameter | .189 |
| Adhesive Cut Length | 21.59 |
| Conductor Outside Diameter | 2.3 – 2.8 |
| Wire Size | 14 – 12 |
| Cut Length | 19.05 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
