D-200-82

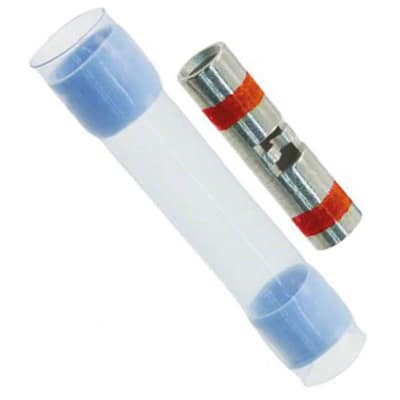

MiniSeal Butt Wire Splice Connector Red Insulated 20 - 26 AWG, D-200 Series | TE Connectivity D-200-82
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the D-200-82 by TE Connectivity / Raychem and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the D-200-82
| Part Name | D-200-82 |
| Manufacturer | TE Connectivity / Raychem |
| Category | Connectors |
| Serrated | No |
| Support Style | Non-Insulation Support |
| Wire/Cable Type | Insulated Wire |
| Insulated | Yes |
| Splice Type | In-Line Splice |
| Barrel Inside Diameter | .048 |
| Plating Material | Nickel |
| TE Internal Number | D17660-000 |
| Splice Configuration | Single to Single |
| Termination Method | Crimp |
| Sealable | Yes |
| Barrel Color | Clear |
| Operating Temperature Range | -55 – 200 |
| Terminal & Splice Type | Splice |
| Overall Length | 1.15 |
| Packaging Method | Bag/Box |
| Packaging Quantity | 100 |
| Splice Features | Splice Kit |
| Insulation Sleeve Material | Fluoropolymer |
| Barrel Type | Closed Barrel |
| Splice Material | Nickel-Plated |
| RoHS | True |
| Number of Serrations | 0 |
| Product Type | Splice |
| Weight per Piece | .38 |
| Heavy Duty | No |
| Accessory Type | Splice |
| Government Qualified | Yes |
| Wire Size | .15 – .75 |
| Insulation Material | Heat Shrink Radiation-Crosslinked Modified Fluoropolymer |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Insulation | Insulated |
| Series | MiniSeal |
| Colour | Red |
| Splice Type | Butt |
| Wire Size | 20 → 26 AWG |
Inventory for the D-200-82 by TE Connectivity / Raychem from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
401
|
|
Visit Site |
No issues have been reported for the D-200-82
If you experienced any issues with this part, please report it.
