D09P24A4GV00LF
Conn;D-Sub;PCBPlug;Straight;Solder;9-Cnts;MetalFace;DeltaDSeries | Amphenol FCI (Amphenol CS) D09P24A4GV00LF
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the D09P24A4GV00LF by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

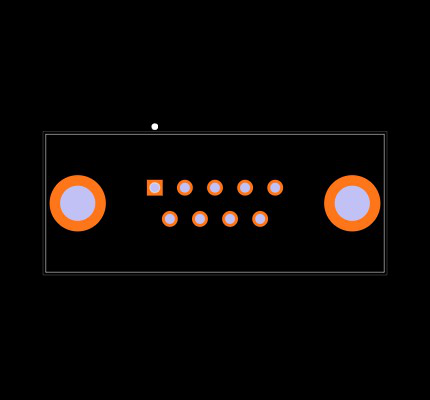

Footprint
No web preview
This Footprint is Available for

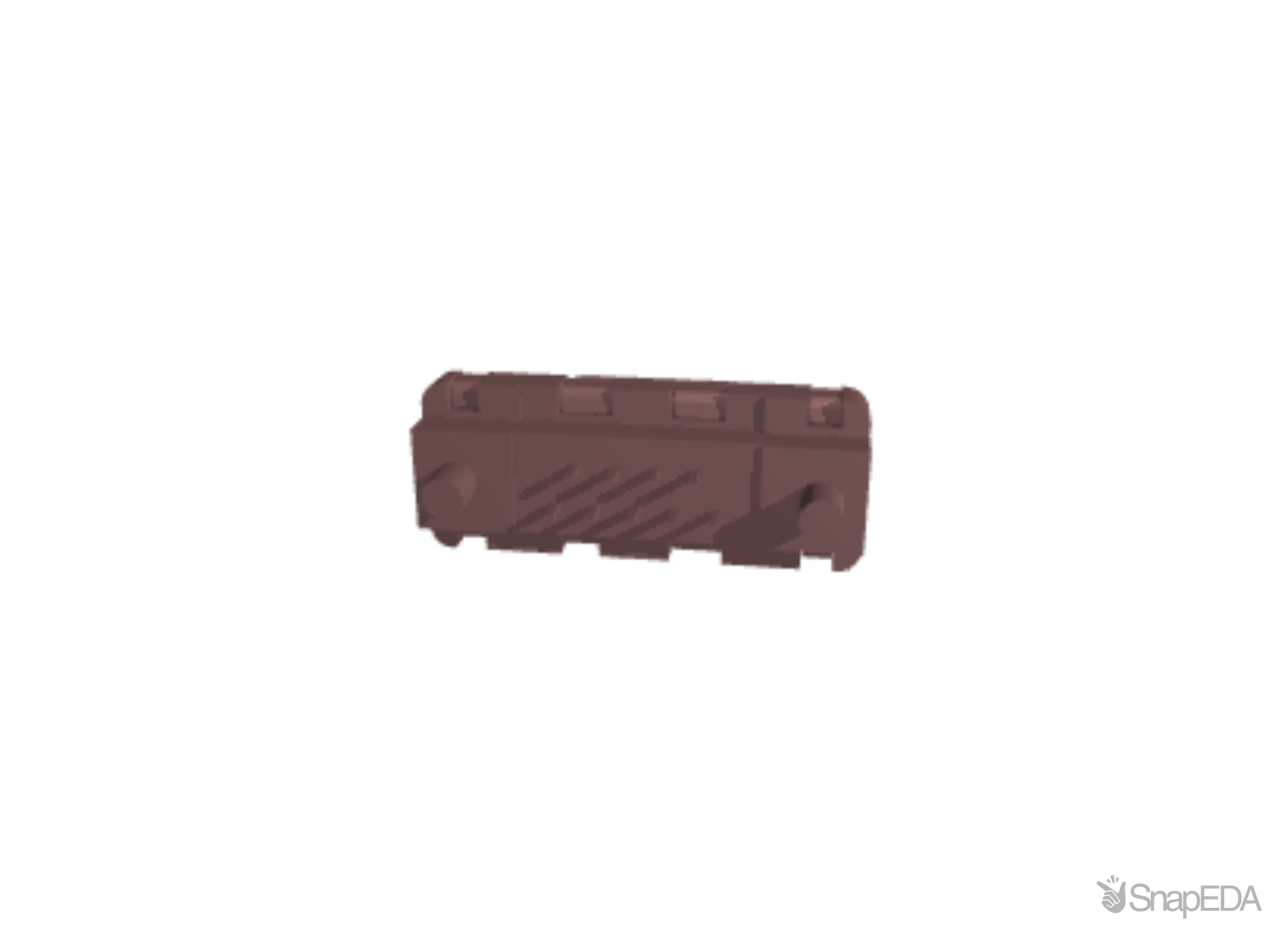

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the D09P24A4GV00LF
| Part Name | D09P24A4GV00LF |
| Manufacturer | Amphenol ICC |
| Category | Connectors |
| RoHS | True |
| Product Link | https://www.amphenol-cs.com/product/D09P24A4GV00LF.html |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Drawing/Datasheet | Drawing/Datasheet |
| eBrochure | eBrochure |
| Termination Method | Solder |
| Dimensions | 30.81 x 11.9 x 12.55 (mm) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 300.0 V |
| Gender | Male |
| Body Orientation | Straight |
| Pitch | 2.74 (mm) |
| Depth | 12.55 (mm) |
| Width | 11.9 (mm) |
| Length | 30.81 (mm) |
| Contact Plating | Gold over Nickel |
| Series | Delta D |
| Number Of Contacts | 9 |
Inventory for the D09P24A4GV00LF by Amphenol from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
2,099
|
|
Visit Site | |
| Compona AG |
120
|
|
Visit Site | |
| Farnell UK |
530
|
|
Visit Site | |
| Heilind Americas |
196
|
|
Visit Site | |
| Newark |
530
|
|
Visit Site | |
| Powell Electronics |
290
|
|
Visit Site | |
| RS UK |
320
|
|
Visit Site | |
| Rutronik |
4,440
|
|
Visit Site | |
| TME |
|
|
Visit Site | |
| TTI Americas |
690
|
|
Visit Site | |
| element14 Singapore |
530
|
|
Visit Site |
No issues have been reported for the D09P24A4GV00LF
If you experienced any issues with the symbol or footprint, please report it.
