D2D-1100

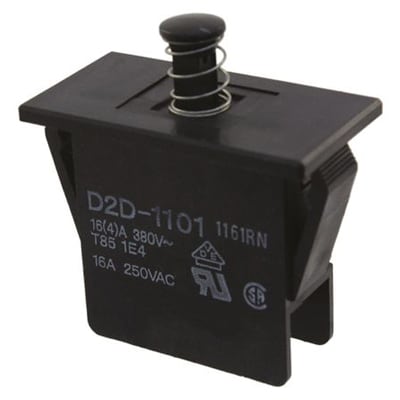

Door interlock sw,SPDB-NO/NC,16A,pan mt | Omron Electronic Components D2D-1100
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the D2D-1100 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

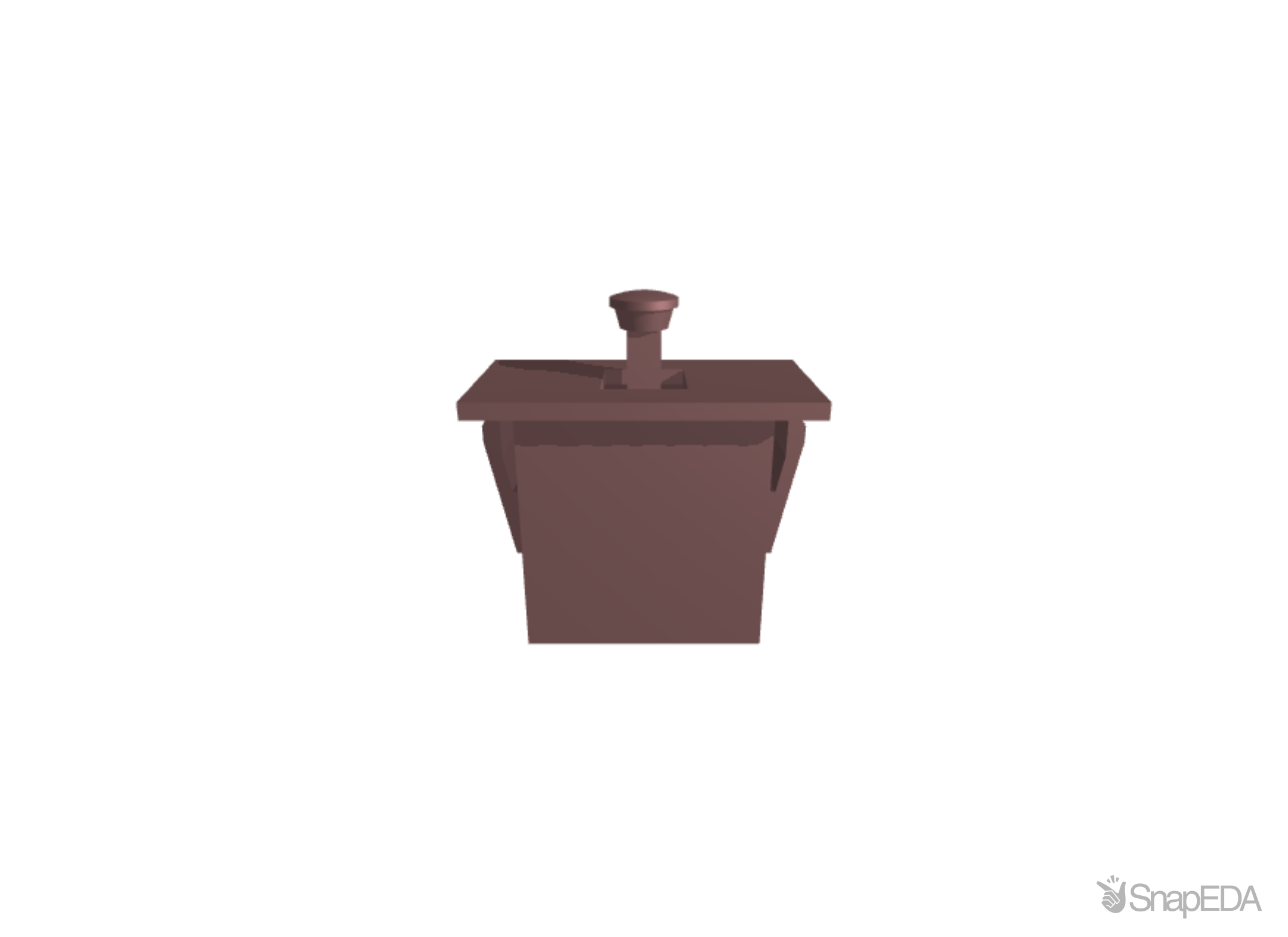

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the D2D-1100
| Part Name | D2D-1100 |
| Manufacturer | Omron |
| Category | Switches |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Operating Force | 5.88 N |
| Actuator Type | Plunger |
| Operating Temperature Range | -25 → +85 (°C) |
| Contact Current Rating (A) | 16 A @ 250 V ac |
| Contact Configuration | SPDT |
| Depth | 13 (mm) |
| Minimum Operating Temperature | -25 (°C) |
| Mechanical Life | 1000000 (Operations) |
| Maximum Operating Temperature | +85 (°C) |
| Terminal Type | Tab |
