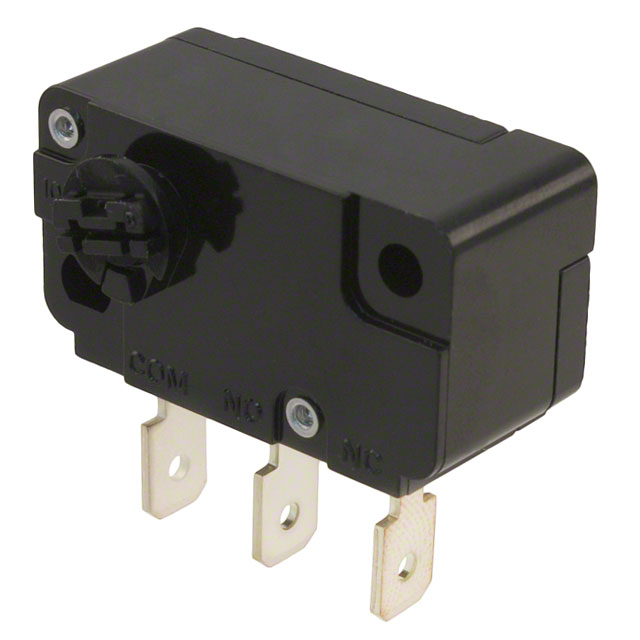

D2MC-5E
Switch Snap Action N.O./N.C. SPDT Auxiliary Quick Connect 5A 250VAC Screw Mount
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the D2MC-5E by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

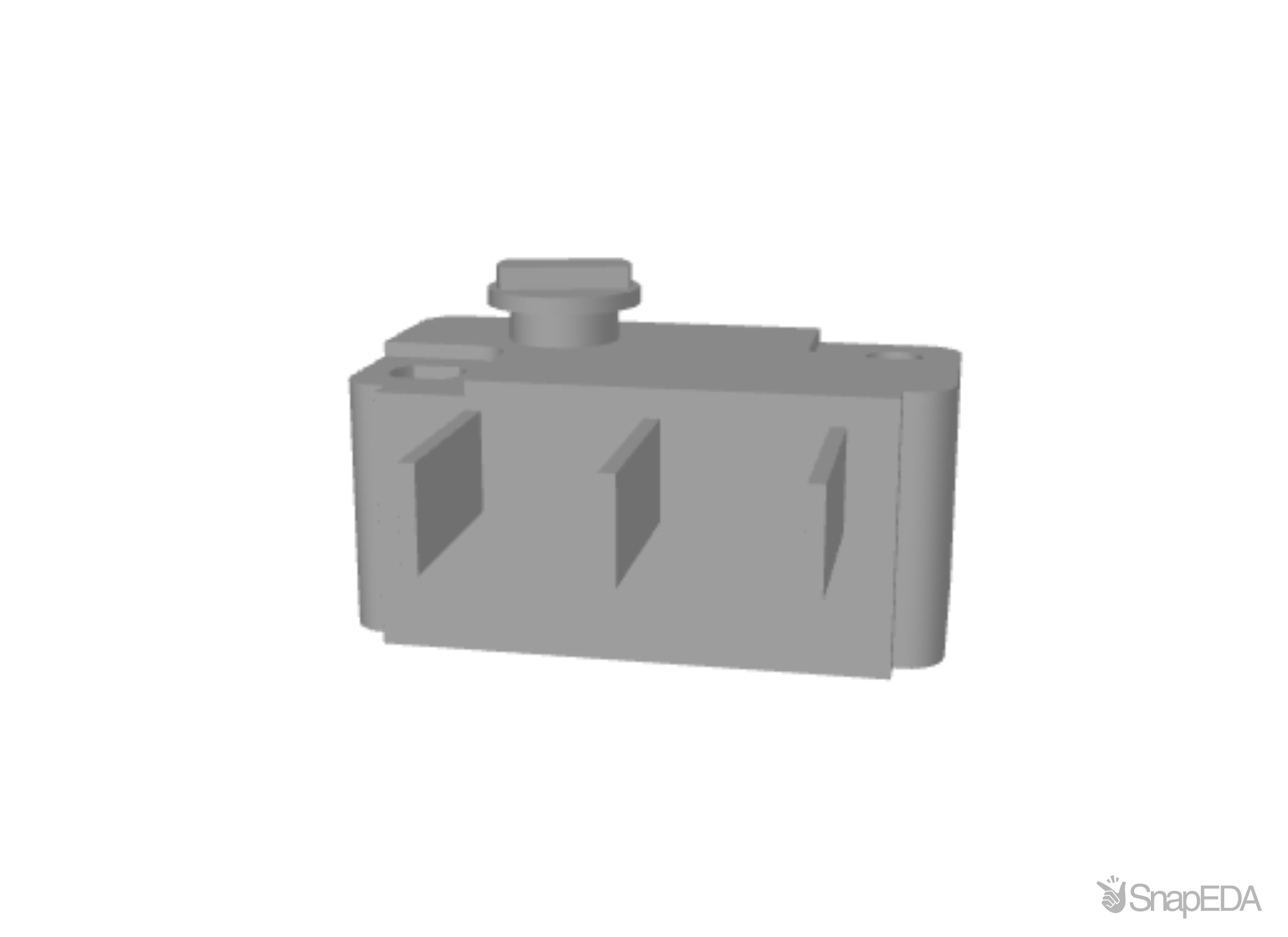

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the D2MC-5E
| Part Name | D2MC-5E |
| Manufacturer | Omron |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Actuator Type | Rotary |
| Ip Rating | IP40 |
| Contact Current Rating (A) | 5 A @ 250 V ac |
| Operating Temperature Range | -25 → +80 (°C) |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25 (°C) |
| Mechanical Life | 10000000 (Operations) |
| Maximum Operating Temperature | +80 (°C) |
| Terminal Type | Tab |
| Contact Material | Silver Alloy |
