D2SW-01L2MS

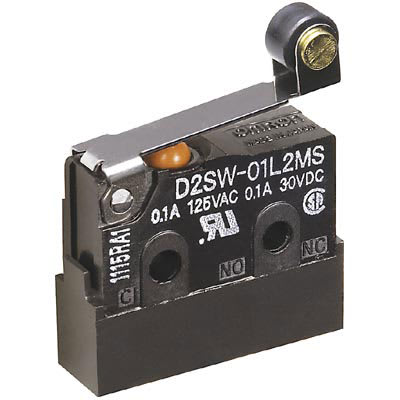

Switch, Hinge Roller Lever, 0.1 A, 125 VAC, Snap-Action, -40 to +85 deg.C, D2SW | Omron Electronic Components D2SW-01L2MS
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the D2SW-01L2MS by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

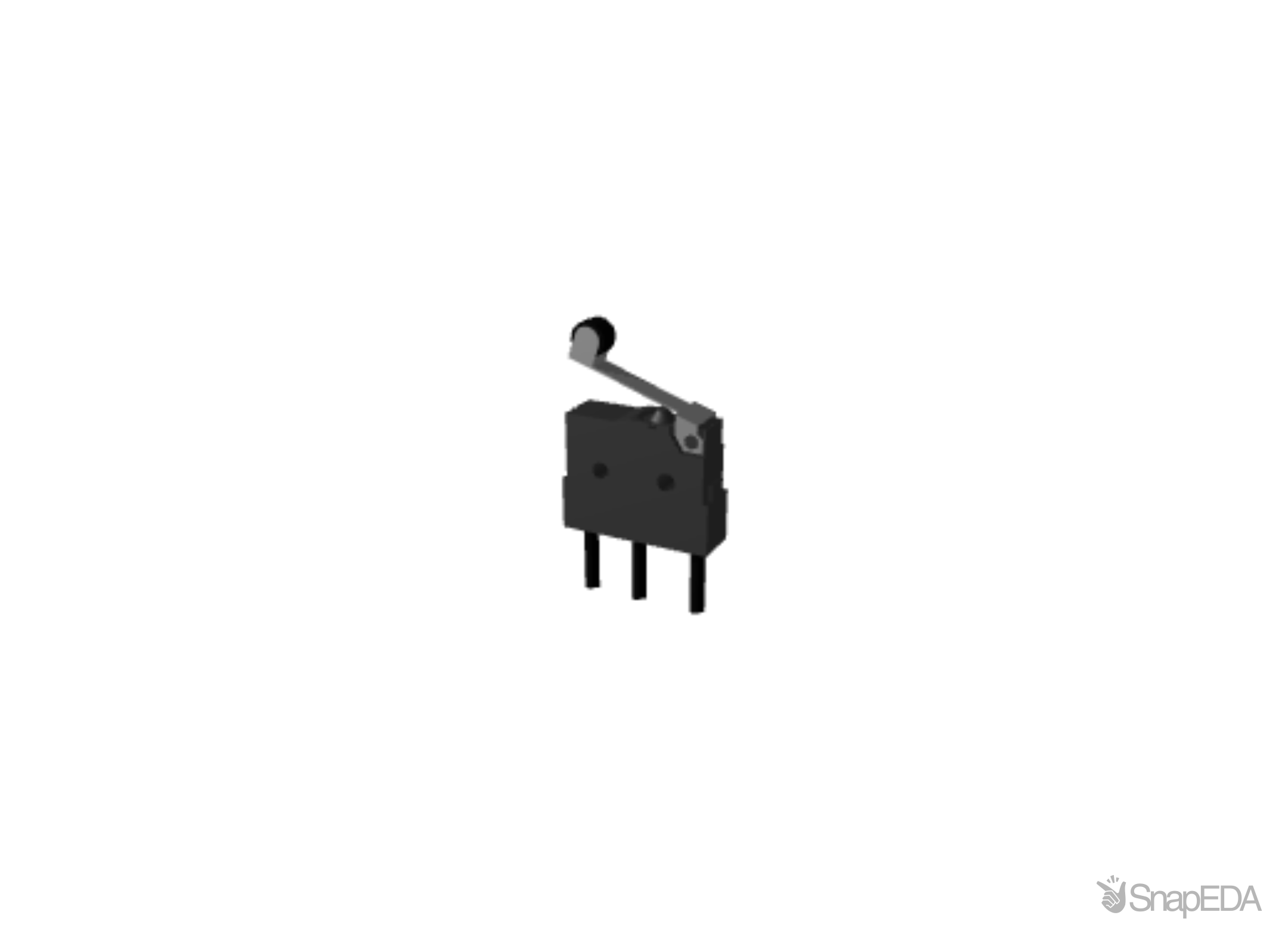

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the D2SW-01L2MS
| Part Name | D2SW-01L2MS |
| Manufacturer | Omron |
| Category | Switches |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Operating Force | 0.58 N |
| Actuator Type | Hinge Lever |
| Operating Temperature Range | -40 → +85 (°C) |
| Contact Current Rating (A) | 100 mA @ 30 V dc |
| Ip Rating | IP67 |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40 (°C) |
| Mechanical Life | 5000000 (Operations) |
| Release Force | 0.06 (N) |
| Maximum Operating Temperature | +85 (°C) |
| Terminal Type | Wire Lead |
| Contact Material | Gold Alloy |
