D4V-8112Z

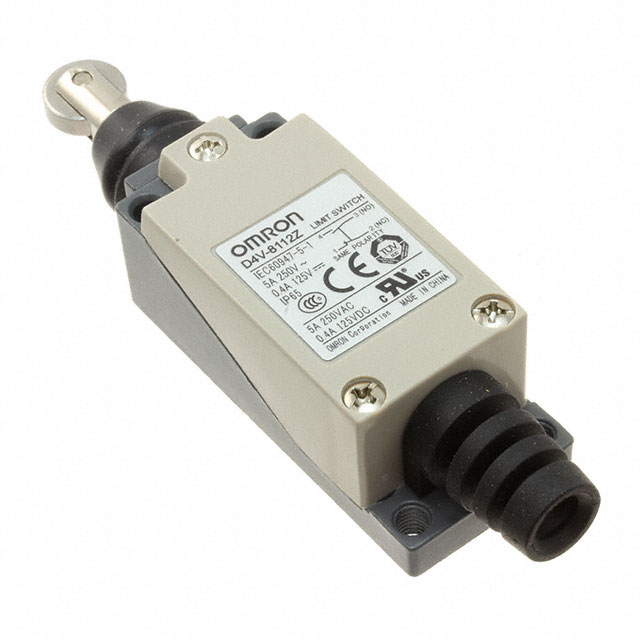

Limit switch, Roller plunger, D4V8112Z | Omron Automation D4V-8112Z
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the D4V-8112Z by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the D4V-8112Z
| Part Name | D4V-8112Z |
| Manufacturer | Omron |
| Category | Switches |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Voltage (V) | 250 (V) |
| Maximum Ac Voltage (V) | 250 (V) |
| Minimum Operating Temperature | -20 (°C) |
| Maximum Current (A) | ac 5 A, dc 400 (mA) |
| Ip Rating | IP65 |
| Depth | 25.4 (mm) |
| Pole And Throw Configuration | DPST |
| Width | 27.8 (mm) |
| Length | 64 (mm) |
| Actuator Type | Roller Plunger |
| Normal State Configuration | NO/NC |
| Mechanical Life | 10000000 (Operations) |
| Maximum Operating Temperature | +60 (°C) |
| Connection Type | Screw |
