D6F-PH0505AD3
Digital Pressure Sensor 00 Pa | Omron Electronic Components D6F-PH0505AD3
Availability: Out of Stock
Package Type: SIP-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the D6F-PH0505AD3 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

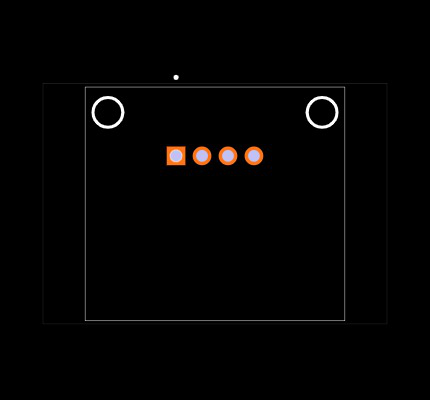

Footprint
No web preview
This Footprint is Available for

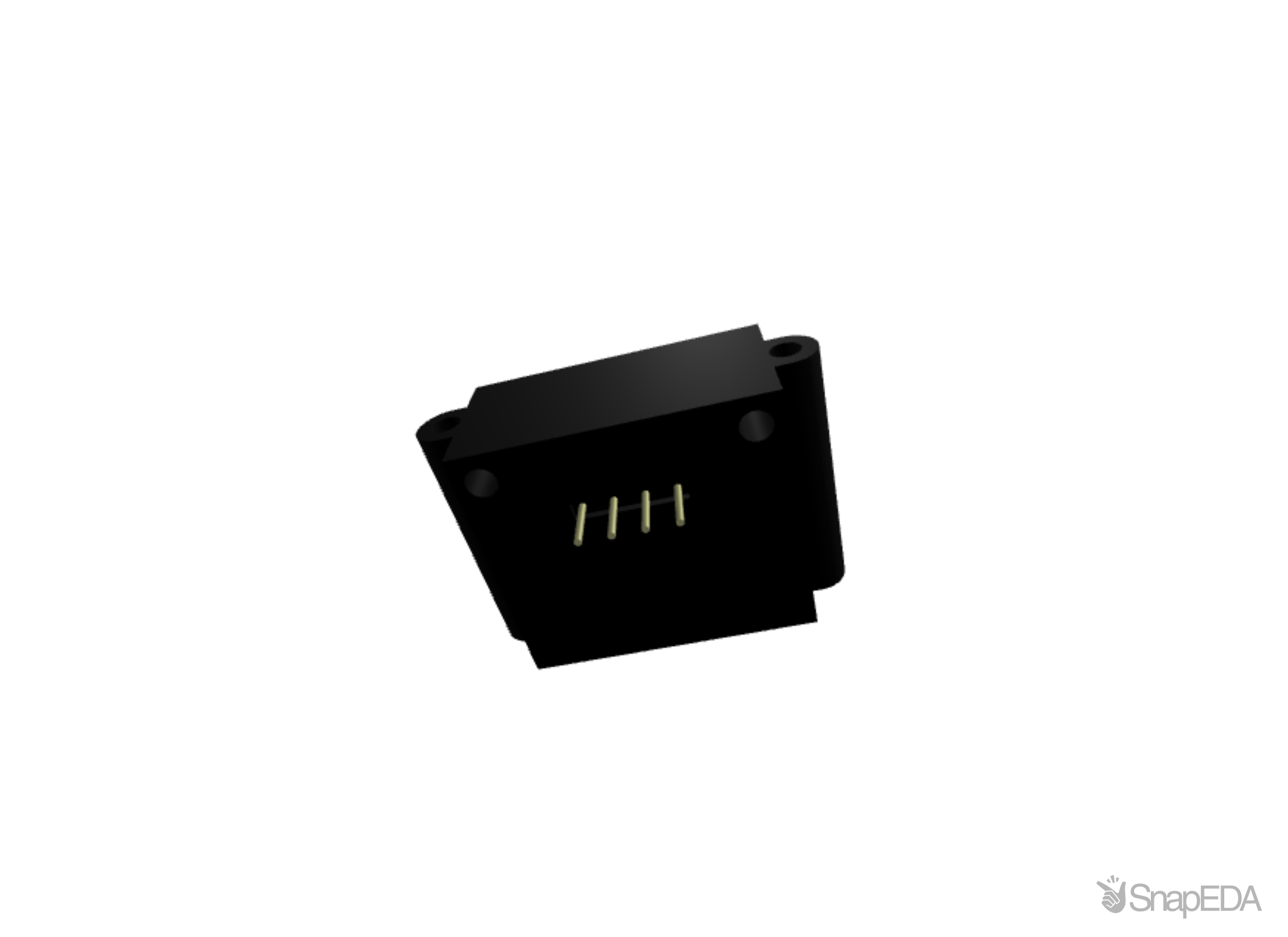

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the D6F-PH0505AD3
| Part Name | D6F-PH0505AD3 |
| Manufacturer | Omron Electronics |
| Category | Sensors |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Current (A) | 6 mA |
| Ip Rating | IP40 |
| Electrical Connection | PCB |
| Output Type | I2C |
| Maximum Pressure Reading | 50 (Pa) |
| Housing Material | PPS |
| Minimum Pressure Reading | -50 (Pa) |
| Pressure Reading Type | Differential |
| Supply Voltage (V) | 2.3 → 3.6 V dc |
| Minimum Operating Temperature | -20 (°C) |
| Response Time | 33 ms |
| Maximum Operating Temperature | +80 (°C) |
| Media Measured | Air |
| Accuracy | ±3 % |
