DA2J10100L

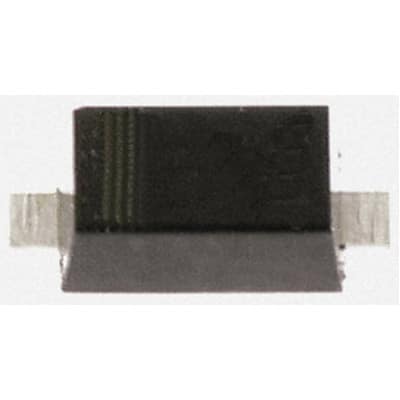

DA2J10100L, SMT Switching Diode, 80V 100mA, 3ns, 2-Pin SMini2 F5 B | Panasonic Electronic Components DA2J10100L
Availability: Out of Stock
Package Type: SOD-323
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DA2J10100L by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

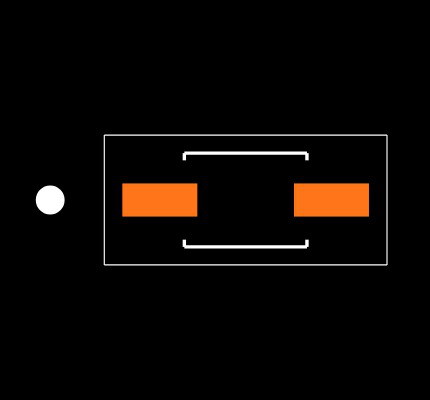

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DA2J10100L
| Part Name | DA2J10100L |
| Manufacturer | Panasonic Electronic |
| Category | Electronic Components |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 1.7 x 1.25 x 0.7 (mm) |
| Mounting Type | Surface Mount |
| Width | 1.25 (mm) |
| Diode Configuration | Single |
| Maximum Forward Voltage Drop (V) | 1.2 (V) |
| Height | 0.7 (mm) |
| Diode Technology | Silicon Junction |
| Length | 1.7 (mm) |
| Package Type | SMini2 F5 B |
| Number Of Elements Per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 2 |
