DAC714P
16-Bit Digital-to-Analog Converter with Serial Data Interface 16-PDIP -40 to 85
Availability: Out of Stock
Package Type: PDIP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DAC714P by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

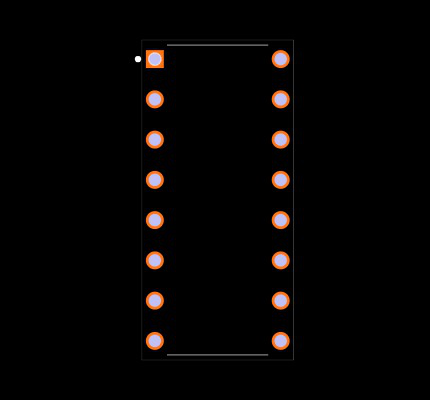

Footprint
No web preview
This Footprint is Available for

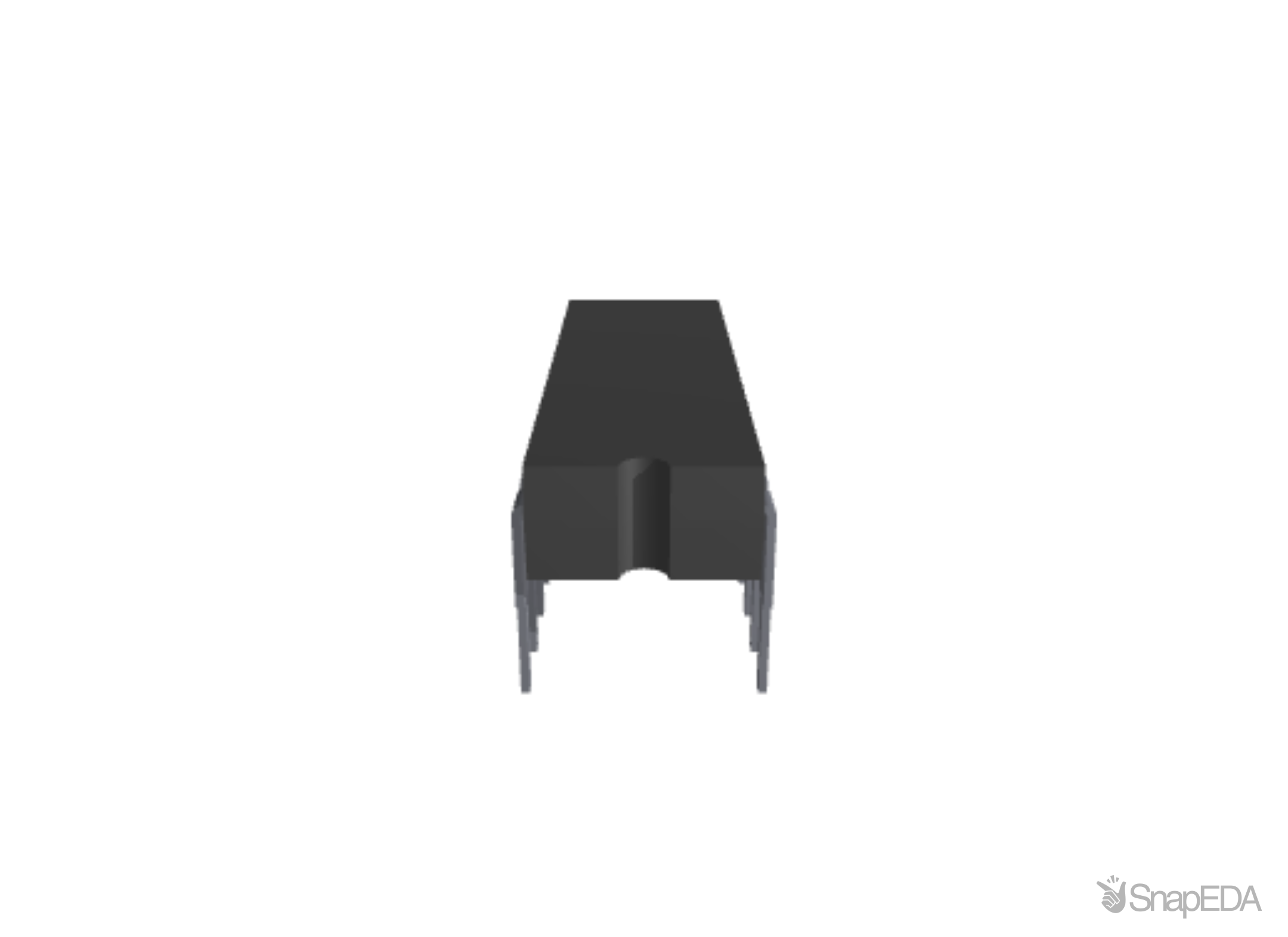

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DAC714P
| Part Name | DAC714P |
| Manufacturer | Texas Instruments |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Conversion Rate | 86 (ksps) |
| Integral Nonlinearity Error | ±4 (LSB) |
| Dimensions | 19.3 x 6.35 x 4.57 (mm) |
| Mounting Type | Through Hole |
| Number Of Dac Channels | 1 |
| Power Supply Type | Dual |
| Minimum Operating Temperature | -40 °C |
| Maximum Settling Time | 10 (µs) |
| Resolution | 16 bit |
| Digital Interface Type | Serial |
| Full Scale Error | ±0.25 (%FSR) |
| Package Type | PDIP |
| Architecture | R-2R, Resistor String |
| Output Polarity | Bipolar, Unipolar |
| Voltage Reference (V) | Internal |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 16 |
No issues have been reported for the DAC714P
If you experienced any issues with the symbol or footprint, please report it.
