DBLS201G
2A, 50V, Standard Bridge, DBLS
Availability: In Stock
Package Type: DBLS
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DBLS201G by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

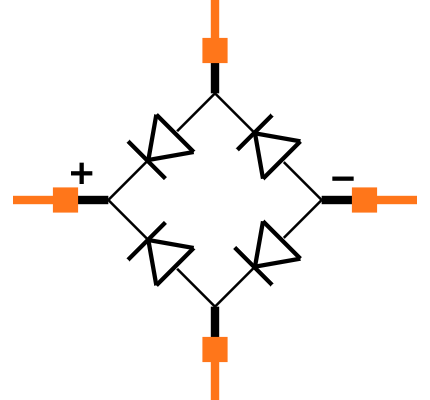

Symbol
No web preview
This Symbol is Available for

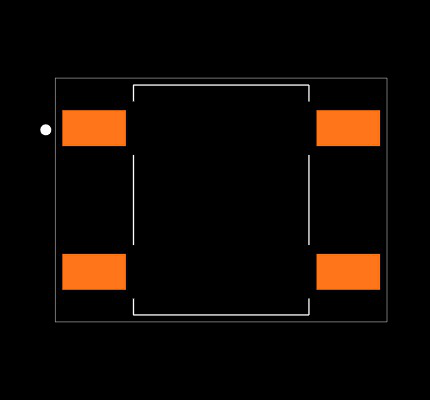

Footprint
No web preview
This Footprint is Available for

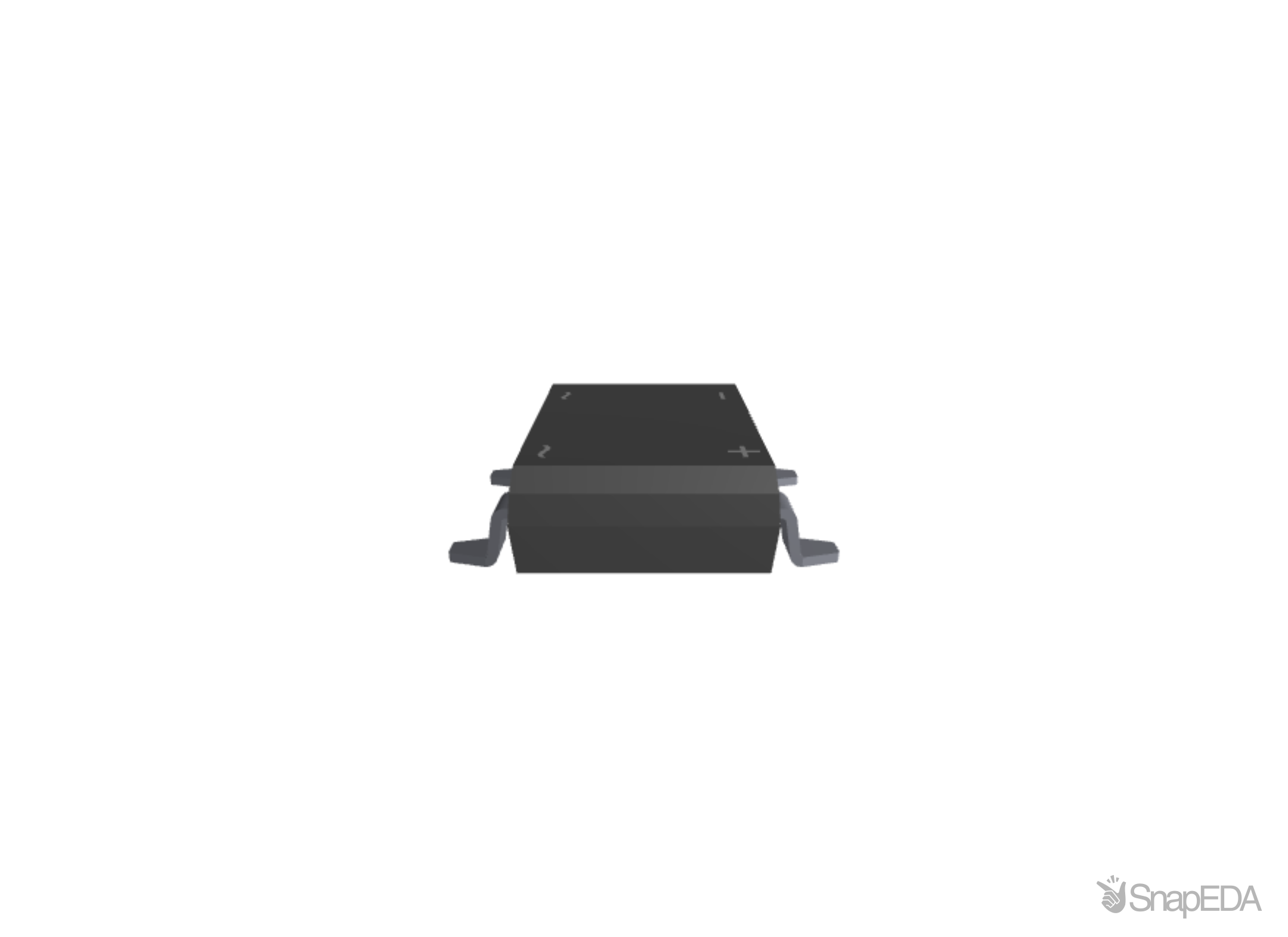

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DBLS201G
| Part Name | DBLS201G |
| Manufacturer | Taiwan Semiconductor |
| Family | STD GPP |
| Maximum DC Reverse Current (A) | 2e-06 |
| Package | DBLS |
| Case Package | DBLS |
| Peak Forward Surge Current (A) | 50.0 |
| Maximum Operating Junction Temperature | 150.0 |
| Maximum Instantaneous Forward Voltage (V) | 1.15 |
| AEC-Q compliant | True |
| Maximum Average Forward Rectified Current (A) | 2.0 |
| RoHS | True |
| Maximum Repetitive Peak Reverse Voltage (V) | 50.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 8.51 x 6.5 x 2.6 (mm) |
| Bridge Type | Single Phase |
| Peak Average Forward Current (A) | 2 (A) |
| Mounting Type | Surface Mount |
| Height | 2.6 (mm) |
| Peak Reverse Current (A) | 10 (µA) |
| Width | 6.5 (mm) |
| Length | 8.51 (mm) |
| Package Type | DBLS |
| Peak Reverse Repetitive Voltage (V) | 50 (V) |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage (V) | 1.15 (V) |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 4 |
| Peak Non Repetitive Forward Surge Current (A) | 50 (A) |
Inventory for the DBLS201G by taiwan from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
3,000 x $0.24
|
Visit Site | |
|
★ Featured
|
9,100
|
N/A | Visit Site | |
| Arrow Europe |
1,500
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Mouser |
|
|
Visit Site |
No issues have been reported for the DBLS201G
