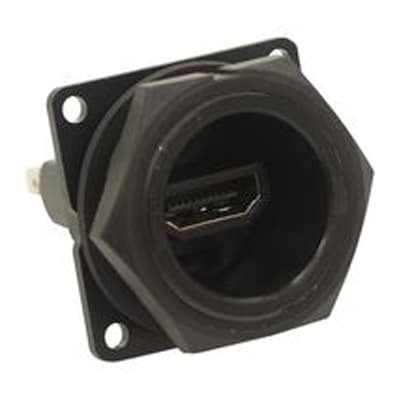

DCP-HDMIB-F
Conn Receptacle HDMI Copper Gold Plated Quick Connect Feed-Thru Panel | Conxall DCP-HDMIB-F
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DCP-HDMIB-F by SWITCHCRAFT and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

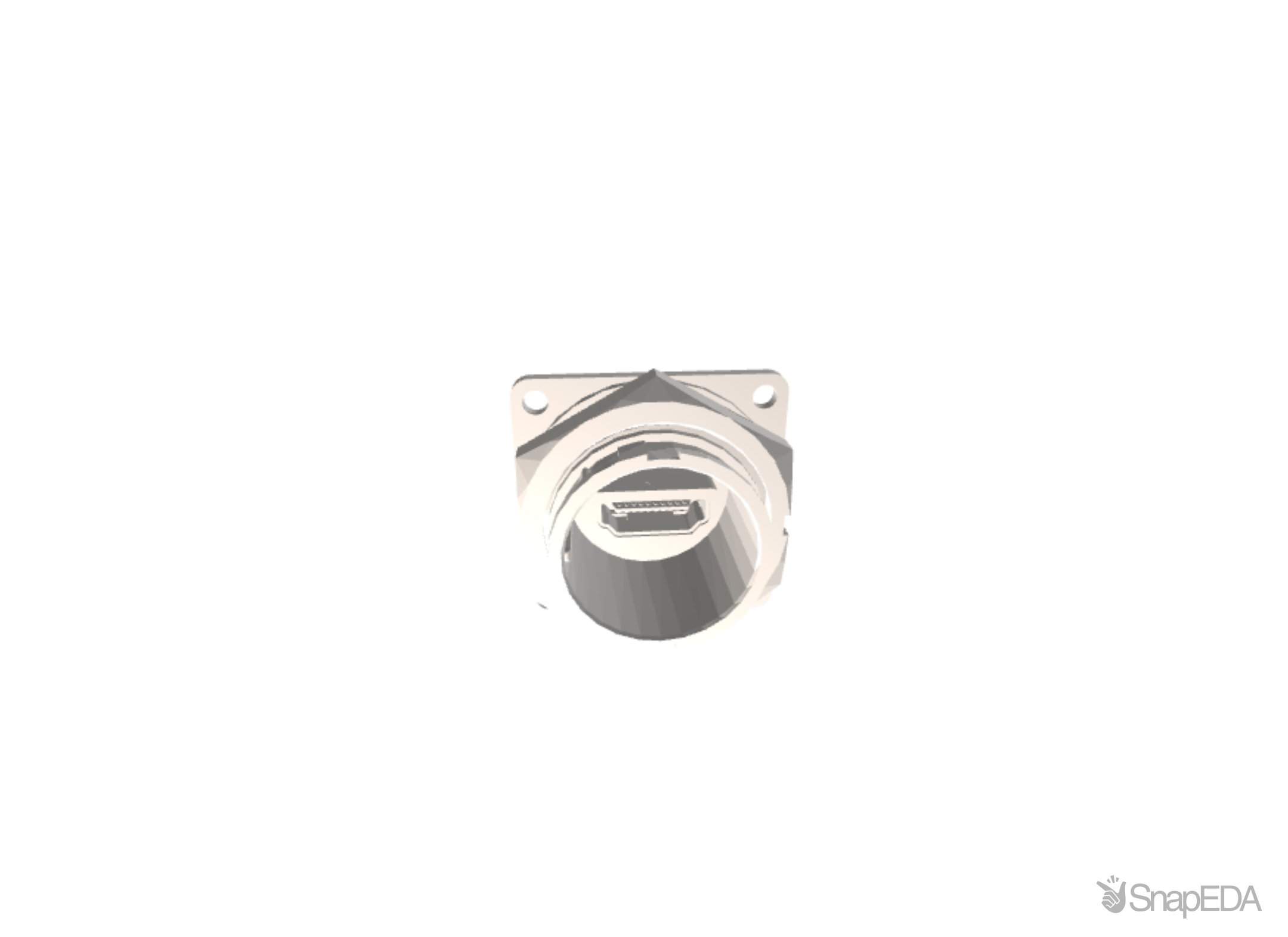

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DCP-HDMIB-F
| Part Name | DCP-HDMIB-F |
| Manufacturer | Switchcraft |
| Category | Connectors |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 500 (mA) |
| Minimum Operating Temperature | -20 (°C) |
| Voltage Rating (V) | 300 V ac |
| Gender | Female |
| Colour | Black |
| Housing Material | Thermoplastic |
| Contact Plating | Gold |
| Termination Method | Feed Thru |
| Size | Standard |
| Maximum Operating Temperature | +80 (°C) |
| Body Orientation | Straight |
| Contact Material | Copper Alloy |
