DF11-4DEP-2C
4 Rectangular Connectors - Housings Plug Black 0.079" (2.00mm)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DF11-4DEP-2C by Hirose and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

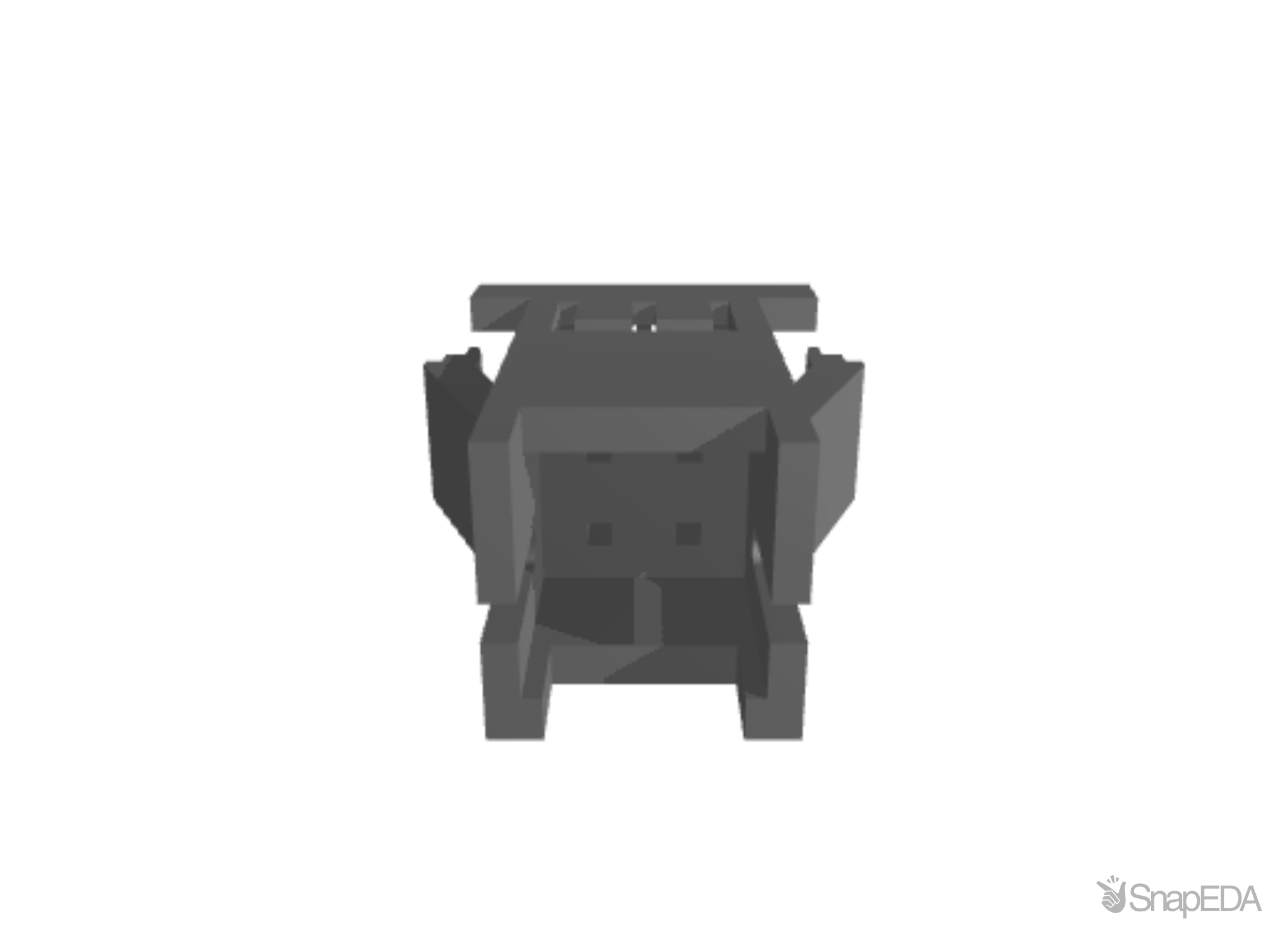

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DF11-4DEP-2C
| Part Name | DF11-4DEP-2C |
| Manufacturer | Hirose |
| Type | In-line plug |
| RoHS | True |
| Product Link | https://www.hirose.com/product/p/CL0543-0619-5-00?lang=en |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | DF11 |
| Pitch | 2 (mm) |
| Housing Material | Polyamide |
| Width | 13 (mm) |
| Length | 11 (mm) |
| Number Of Rows | 2 |
| Gender | Male |
| Number Of Contacts | 4 |
Inventory for the DF11-4DEP-2C by Hirose from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
130
|
|
Visit Site | |
|
★ Featured
|
22,000
|
2,060 x $0.15
|
Visit Site | |
| Onlinecomponents |
2,900
|
|
Visit Site | |
| Verical |
2,610
|
|
Visit Site |
No issues have been reported for the DF11-4DEP-2C
