DF13-9P-1.25DSA(25)
SnapVerified
Connector Header Through Hole 9 position 0.049" (1.25mm)
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DF13-9P-1.25DSA(25) by Hirose and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

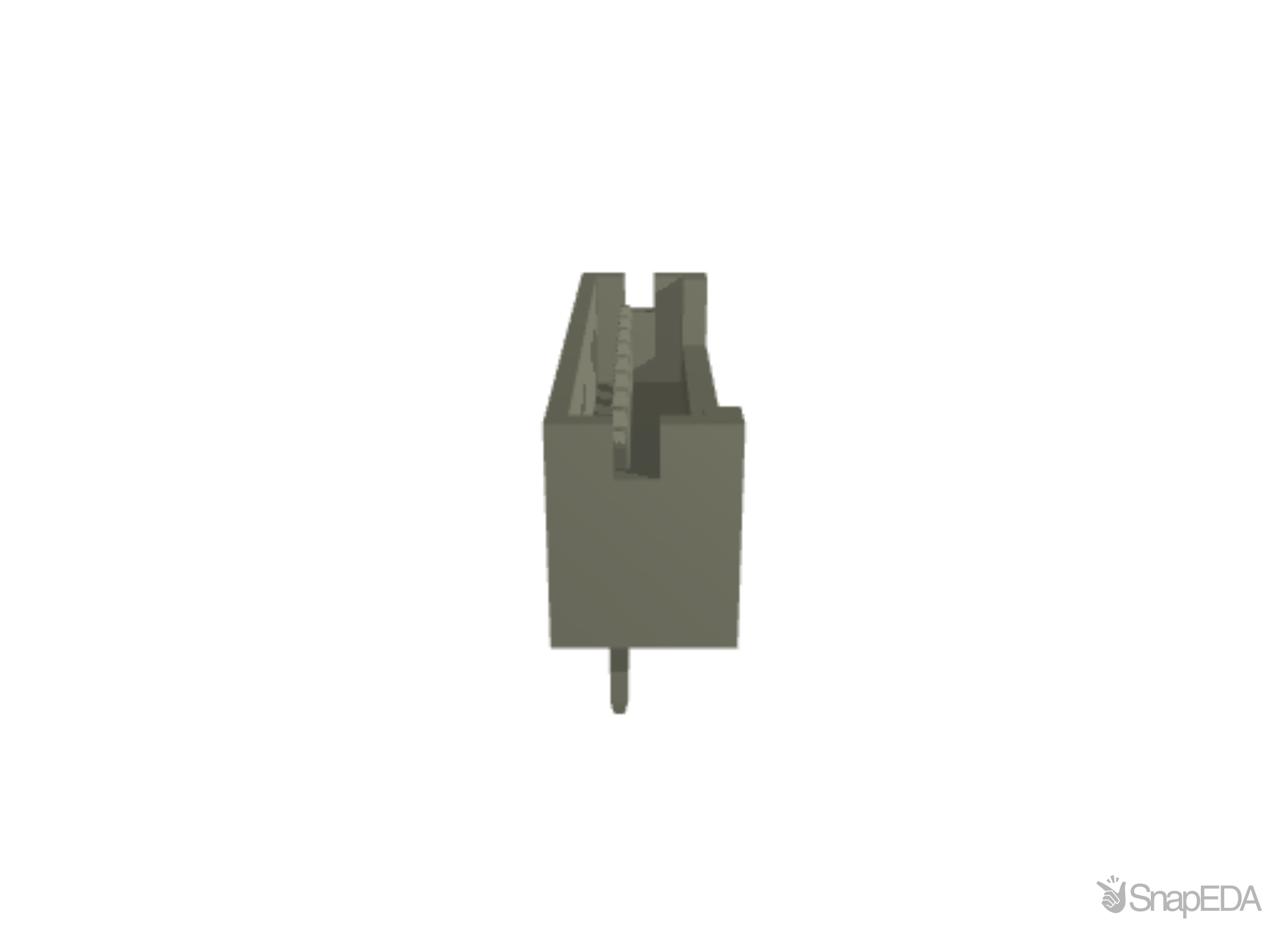

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DF13-9P-1.25DSA(25)
| Part Name | DF13-9P-1.25DSA(25) |
| Manufacturer | Hirose Electric Co Ltd |
| Orientation | Straight |
| Temperature Range Max. | 85℃ |
| Temperature Range Min. | -35℃ |
| Product Link | https://www.hirose.com/en/product/p/CL0536-0108-8-25 |
| Type | Header |
| Pin Count | 9 |
| RoHS | TRUE |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
