DFEH12060D-100M=P3
Inductor with Inductance: 10uH Tol. +/-20%, Package: 5150 (130126)
Availability: Out of Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DFEH12060D-100M=P3 by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint

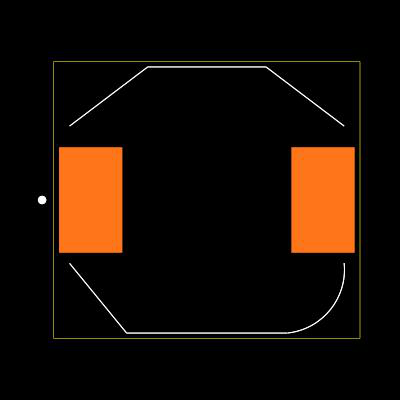

No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DFEH12060D-100M=P3
| Part Name | DFEH12060D-100M=P3 |
| Manufacturer | Murata |
| Category | Surface Mount Inductors |
| Series | DFEH12060D |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22DFEH12060D-100M=P3%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=DFEH12060D-100M%23 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Automotive Standard | AEC-Q200 |
| Maximum Dc Resistance | 20 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 13 x 12.6 x 6 (mm) |
| Shielded | Yes |
| Series | DFEH12060D |
| Depth | 12.6 (mm) |
| Height | 6 (mm) |
| Package Case | 5150 (130126) |
| Length | 13 (mm) |
| Core Material | Metal |
| Inductance | 10 μH |
| Maximum Dc Current (A) | 7.9 (A) |
| Maximum Operating Temperature | +155 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -40 (°C) |
