DK1A-12V-F
Relay;E-Mech;Power;SPST-NO;Cur-Rtg 10A;Ctrl-V 12DC;Vol-Rtg 250/30AC/DC;4 Pin | Panasonic Electronic Components DK1A-12V-F
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DK1A-12V-F by Panasonic Electric Works and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

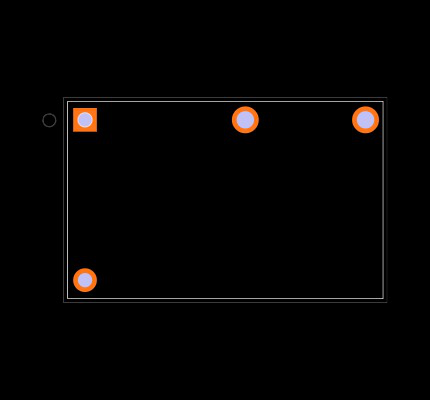

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DK1A-12V-F
| Part Name | DK1A-12V-F |
| Manufacturer | Panasonic |
| Category | Relays |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 12.5 (mm) |
| Life | 10^5 (Electrical) Operations, 5 x 10^7 (Mechanical) Operations |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage (Ac) (V) | 250 (V) |
| Coil Power | 200 (mW) |
| Number Of Poles | 1 |
| Switching Current (A) | 10 (A) |
| Coil Voltage (V) | 12 (V dc) |
| Coil Resistance | 720 (Ω) |
| Length | 20 (mm) |
| Height | 10 (mm) |
| Application | Domestic Appliances, Office Equipment |
| Maximum Switching Power (Ac) | 2.5 kVA |
| Minimum Operating Temperature | -40 (°C) |
| Isolation Coil To Contact | 4 (kVrms) |
| Latching | No |
| Maximum Switching Power (Dc) | 300 W |
| Maximum Operating Temperature | +65 (°C) |
| Maximum Switching Voltage (Dc) (V) | 125 (V dc) |
| Contact Configuration | SPST |
| Terminal Type | PCB Pin |
Inventory for the DK1A-12V-F by Panasonic Electric Works from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
1
|
|
Visit Site | |
|
★ Featured
|
60,000
|
107 x $2.82
|
Visit Site | |
| Arrow Europe |
1,521
|
|
Visit Site | |
| Verical |
1,520
|
19 x $6.11
|
Visit Site |
No issues have been reported for the DK1A-12V-F
If you experienced any issues with the symbol or footprint, please report it.
