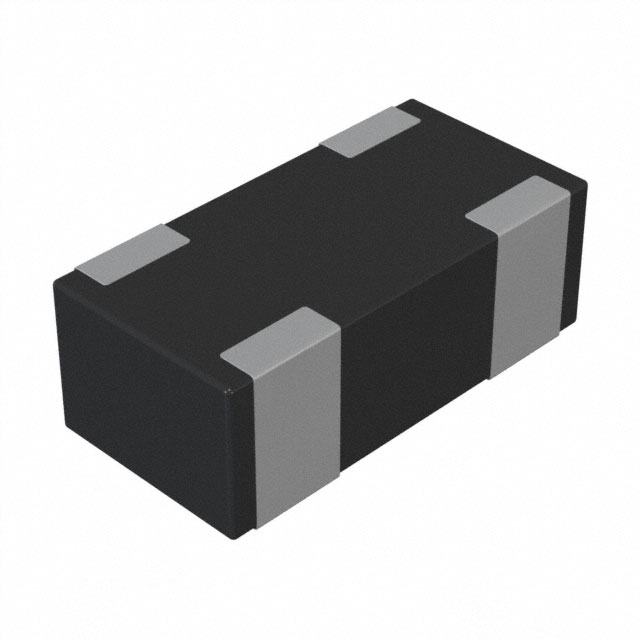

DLP31SN121ML2L
2 Line Common Mode Choke Surface Mount 120 Ohms @ 100 MHz 100mA DCR 2Ohm
Availability: Out of Stock
Package Type: 1206
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DLP31SN121ML2L by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

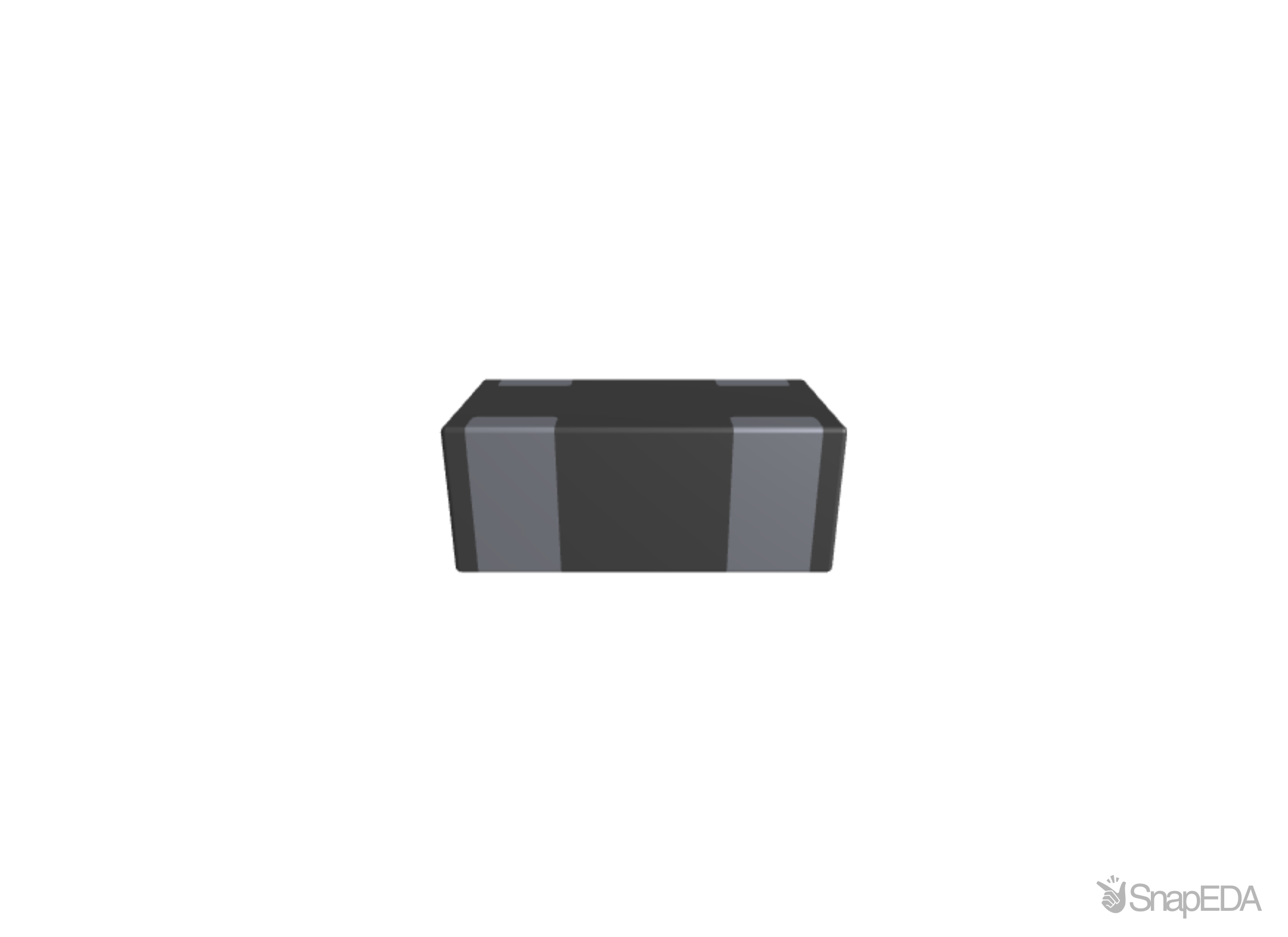

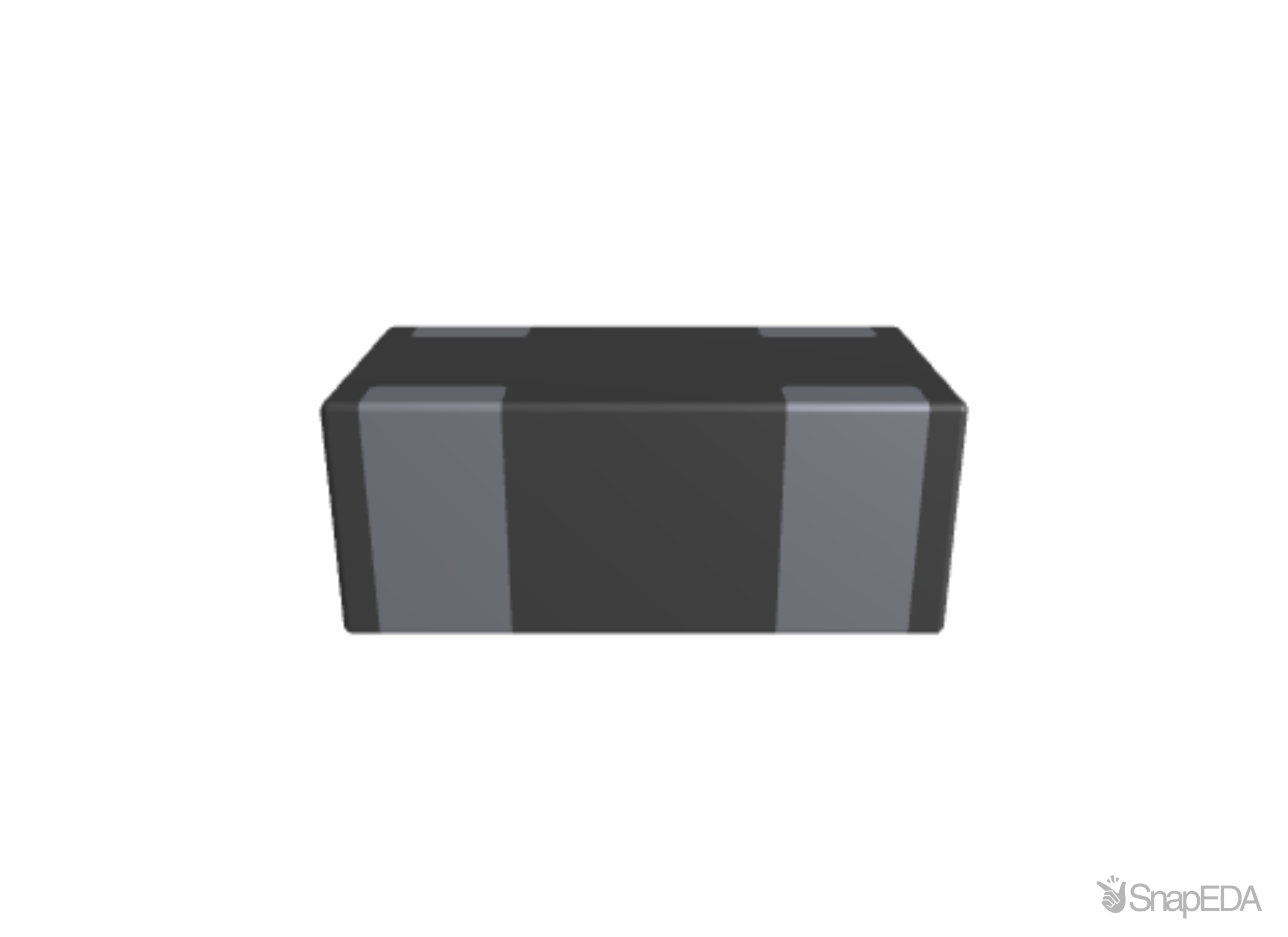

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DLP31SN121ML2L
| Part Name | DLP31SN121ML2L |
| Manufacturer | Murata |
| Category | Common Mode Chokes |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=DLP31SN121ML2%23 |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22DLP31SN121ML2L%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| Current Rating (A) | 0.1 |
| Series | DLP31SN_ML2 |
| Voltage Rating DC (V) | 16.0 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=DLP31SN121ML2%23 |
| Impedance Frequency | 100000000.0 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Current (A) | 100 mA |
| Mounting Type | Surface Mount |
| Operating Temperature Range | -40°C → +85°C |
| Series | DLP31S |
| Termination Style | Solder Pad |
| Depth | 1.6 (mm) |
| Height | 1.15 (mm) |
| Test Frequency | 100 MHz |
| Length | 3.2 (mm) |
| Dimensions | 3.2 x 1.6 x 1.15 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Impedance | 120 Ω |
| Package/Case | 1206 (3216M) |
| Maximum Operating Temperature | +85 (°C) |
| Dc Resistance | 2 (Ω) |
Inventory for the DLP31SN121ML2L by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
|
3,000 x $0.98
|
Visit Site | |
| Rutronik |
|
3,000 x $0.47
|
Visit Site | |
| TTI Americas |
|
|
Visit Site |
No issues have been reported for the DLP31SN121ML2L
