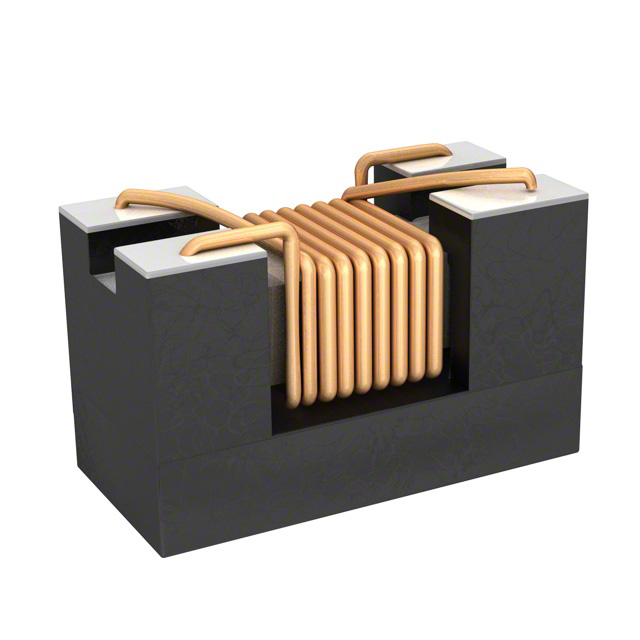

DLW31SN261SQ2L
2 Line Common Mode Choke Surface Mount 260 Ohms @ 100 MHz 310mA DCR 500mOhm
Availability: In Stock
Package Type: HORIZONTAL-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DLW31SN261SQ2L by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DLW31SN261SQ2L
| Part Name | DLW31SN261SQ2L |
| Manufacturer | Murata |
| Impedance based on Impedance Frequency | 260.0 |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=DLW31SN261SQ2%23 |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22DLW31SN261SQ2L%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| Current Rating (A) | 0.31 |
| Series | DLW31SN_SQ2 |
| Voltage Rating DC (V) | 50.0 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=DLW31SN261SQ2%23 |
| Impedance Frequency | 100000000.0 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
