DLW31SN900SQ2L
2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 370mA DCR 300mOhm
Availability: In Stock
Package Type: HORIZONTAL-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DLW31SN900SQ2L by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

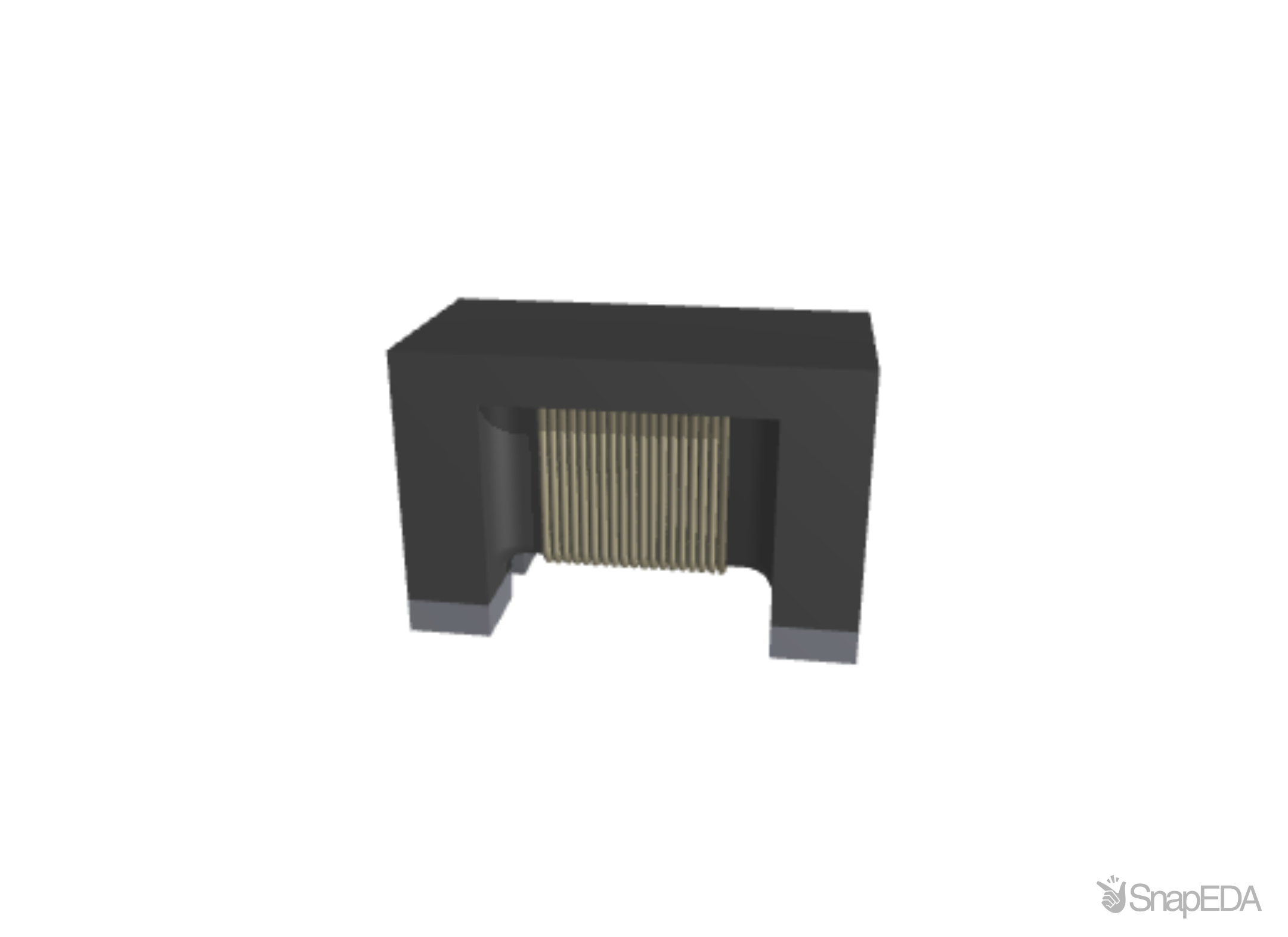

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DLW31SN900SQ2L
| Part Name | DLW31SN900SQ2L |
| Manufacturer | Murata |
| Category | Surface Mount Inductors |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=DLW31SN900SQ2%23 |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22DLW31SN900SQ2L%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| Impedance based on Impedance Frequency | 90.0 |
| Current Rating (A) | 0.37 |
| Series | DLW31SN_SQ2 |
| Voltage Rating DC (V) | 50.0 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=DLW31SN900SQ2%23 |
| Impedance Frequency | 100000000.0 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 300 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 3.2 x 1.6 x 1.9 (mm) |
| Tolerance | ±25 (%) |
| Maximum Dc Current (A) | 370 (mA) |
| Series | DLW31S |
| Depth | 1.6 (mm) |
| Height | 1.9 (mm) |
| Length | 3.2 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Operating Temperature | +85 (°C) |
| Package/Case | 1206 (3216M) |
Inventory for the DLW31SN900SQ2L by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
41,463
|
|
Visit Site | |
|
★ Featured
|
80,000
|
1,015 x $0.30
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
6,401
|
|
Visit Site | |
| CoreStaff |
858
|
|
Visit Site | |
| Farnell UK |
8,060
|
|
Visit Site | |
| RS UK |
1,084
|
|
Visit Site | |
| Rutronik |
2,000
|
|
Visit Site | |
| TME |
2,360
|
|
Visit Site | |
| TTI Americas |
12,000
|
|
Visit Site | |
| Verical |
33
|
33 x $0.46
|
Visit Site | |
| element14 Singapore |
8,060
|
|
Visit Site |
No issues have been reported for the DLW31SN900SQ2L
