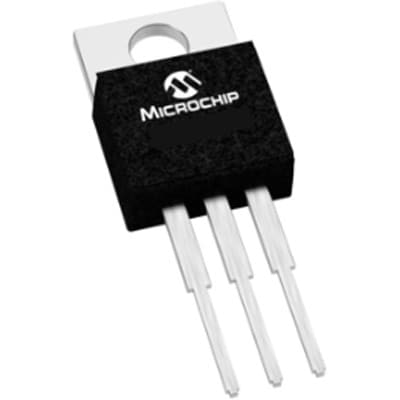

DN2540N5-G
MOSFET, DEPLETION-MODE, 400V, 25 Ohm3 TO-220 TUBE | Microchip Technology Inc. DN2540N5-G
Availability: In Stock
Package Type: TO-220
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DN2540N5-G by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

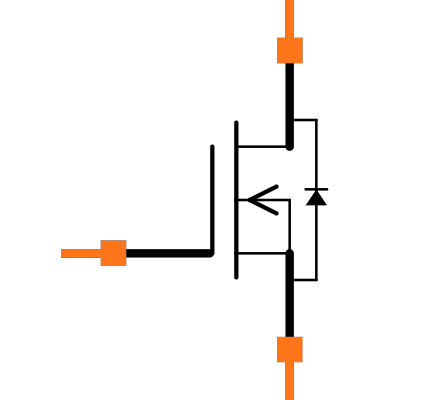

Symbol
No web preview
This Symbol is Available for

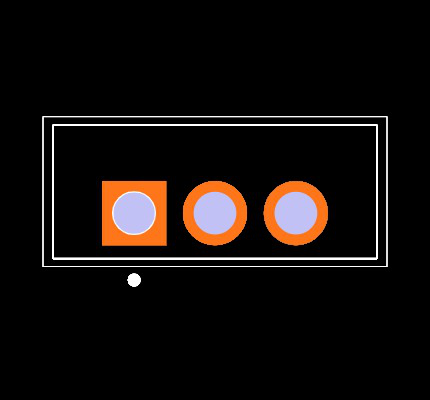

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DN2540N5-G
| Part Name | DN2540N5-G |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 400 V |
| Width | 4.826 (mm) |
| Maximum Continuous Drain Current (A) | 500 mA |
| Mounting Type | Through Hole |
| Maximum Gate Source Voltage (V) | -20 V, +20 V |
| Maximum Power Dissipation | 15 W |
| Length | 10.7 (mm) |
| Channel Type | N |
| Channel Mode | Depletion |
| Maximum Gate Threshold Voltage (V) | 3.5 (V) |
| Height | 16.51 (mm) |
| Package Type | TO-220 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Drain Source Resistance | 25 Ω |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
| Transistor Configuration | Single |
Inventory for the DN2540N5-G by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
932
|
|
Visit Site | |
|
★ Featured
|
6,297
|
250 x $1.41
|
Visit Site | |
| Arrow Electronics |
145
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
1,437
|
|
Visit Site | |
| Farnell UK |
800
|
|
Visit Site | |
| Newark |
202
|
|
Visit Site | |
| Onlinecomponents |
600
|
|
Visit Site | |
| RS UK |
140
|
|
Visit Site | |
| TME |
285
|
|
Visit Site | |
| Verical |
850
|
|
Visit Site | |
| element14 Singapore |
800
|
|
Visit Site |
No issues have been reported for the DN2540N5-G
If you experienced any issues with the symbol or footprint, please report it.
