DO3316P-223MLD
INDUCTOR, PWR, 22UH, 2.7A, 20%,19MHZ; Product Range:Coilcraft - DO3316P Series; Inductance:22µH; Inductance Tolerance:± 20%; DC Resistance Max:0.085ohm; DC Current Rating:2.7A; Self Resonant Frequency:19MHz; Inductor Case Style:SMD; Core Material:(Not Applicable)
Availability: In Stock
Package Type: DO-3316
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DO3316P-223MLD by Coilcraft and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

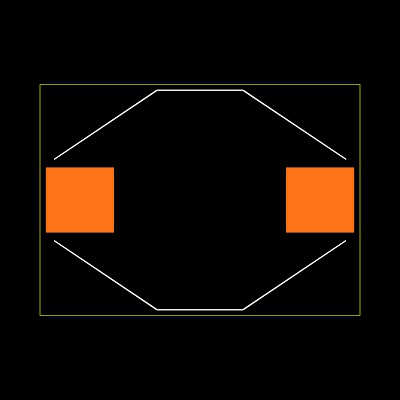

Footprint
