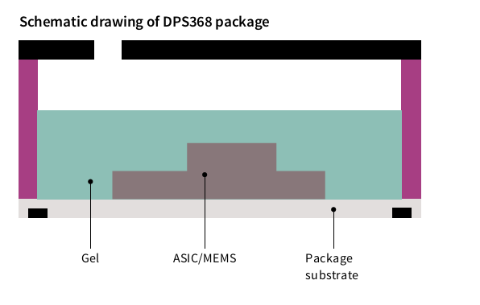

DPS368
Package dimensions: 8-pin LGA, 2.0 x 2.5 x 1.1 mm3 | Operation range: Pressure: 3001200 hPa Temperature: -4085C | Precision: 0.002 hPa (or 0.02 m) | Rel. accuracy: 0.06 hPa (or 0.5 m) | Abs. accuracy: 1 hPa (or 8 m) | Temperature accuracy: 0.5C | Avg. current consumption: 1.7 A(pressure measurement) @1Hzsampling rate, standby: 0.5 A. | Integrated FIFO | Interface: I2C and SPI(both with optional interrupt)
Availability: In Stock
Package Type: VFLGA-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DPS368 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DPS368
| Part Name | DPS368 |
| Manufacturer | Infineon |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the DPS368 by Infineon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
46,110
|
98 x $3.08
|
Visit Site |
No issues have been reported for the DPS368
If you experienced any issues with the symbol or footprint, please report it.
