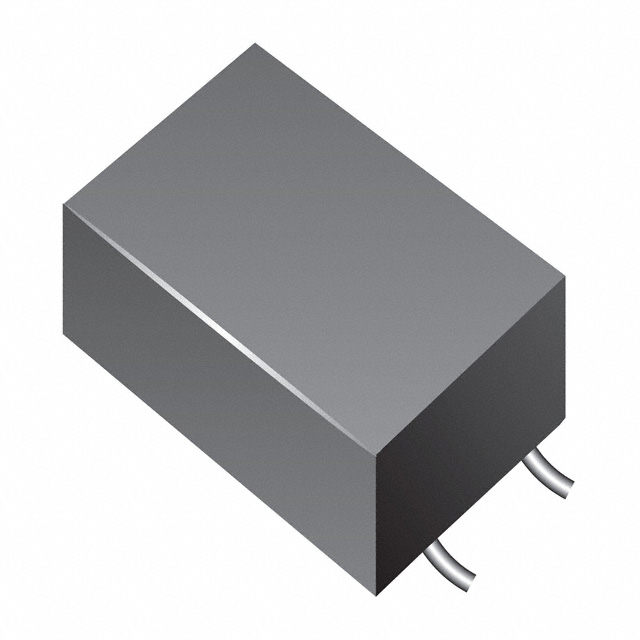

DR221-513AE
CMC5x3.3x3.3mm,5050%/30%0.2A,non-shdSMD | Bourns DR221-513AE
Availability: In Stock
Package Type: HORIZONTAL-4
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DR221-513AE by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

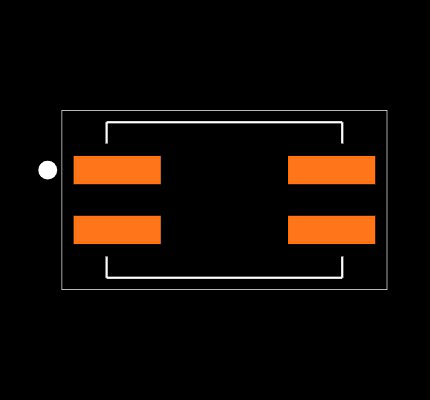

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DR221-513AE
| Part Name | DR221-513AE |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Current (A) | 200 mA |
| Mounting Type | Axial |
| Operating Temperature Range | -40°C → +125°C |
| Series | DR221 |
| Termination Style | Solder Pad |
| Length | 5 (mm) |
| Height | 3.3 (mm) |
| Test Frequency | 150 MHz |
| Depth | 3.3 (mm) |
| Inductance | 50 μH |
| Dc Resistance | 0.32 (Ω) |
| Maximum Operating Temperature | +125 (°C) |
| Minimum Operating Temperature | -40 (°C) |
| Dimensions | 5 x 3.3 x 3.3 (mm) |
