DR73-102-R

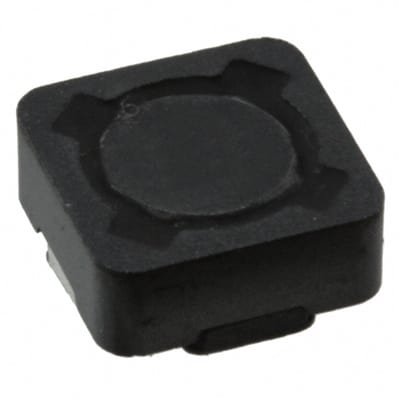

DR73/74/125/127 WireWound SMD Inductor w/ Ferrite Core,1 mH +/-20%WireWound | Eaton Electronics DR73-102-R
Availability: In Stock
Package Type: NON-STANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DR73-102-R by Eaton and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

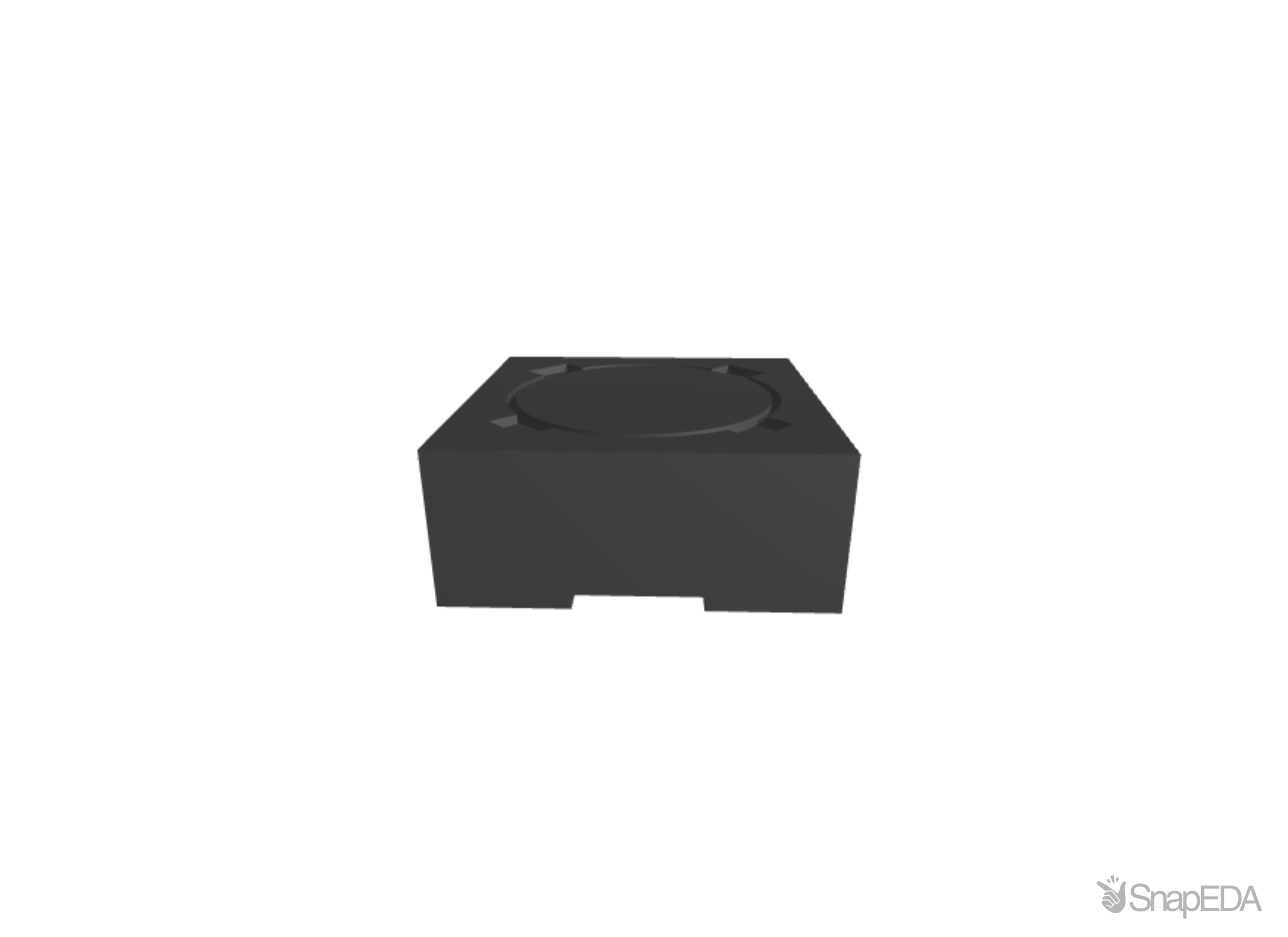

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DR73-102-R
| Part Name | DR73-102-R |
| Manufacturer | Eaton |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 4.34 (Ω) |
| Inductor Construction | Wire-Wound |
| Dimensions | 7.6 x 7.6 x 3.55 (mm) |
| Shielded | Yes |
| Series | DR73/74/125/127 |
| Depth | 7.6 (mm) |
| Height | 3.55 (mm) |
| Package Case | 73 |
| Length | 7.6 (mm) |
| Core Material | Ferrite |
| Inductance | 1 mH |
| Maximum Self Resonant Frequency | 100 (kHz) |
| Maximum Dc Current (A) | 250 (mA) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -40 (°C) |
