DR74-4R7-R
Inductor, Wirewound, Shielded, 4.7uH, 25.4mOhm, 3.34A, Surface Mount, DR Series | Eaton Electronics DR74-4R7-R
Availability: In Stock
Package Type: NONSTANDARD
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DR74-4R7-R by Eaton and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

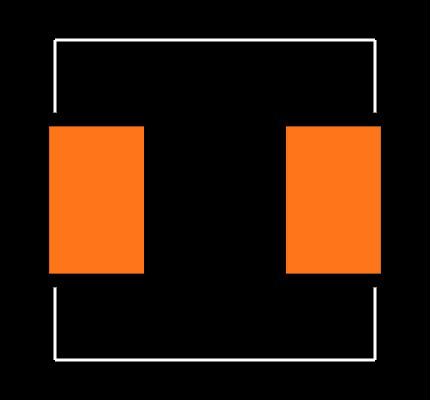

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DR74-4R7-R
| Part Name | DR74-4R7-R |
| Manufacturer | Eaton |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 25.4 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 7.6 x 7.6 x 4.35 (mm) |
| Shielded | Yes |
| Maximum Operating Temperature | +125 (°C) |
| Depth | 7.6 (mm) |
| Height | 4.35 (mm) |
| Package Case | 0704 |
| Length | 7.6 (mm) |
| Core Material | Ferrite |
| Inductance | 4.7 μH |
| Maximum Self Resonant Frequency | 100 (kHz) |
| Maximum Dc Current (A) | 4.37 (A) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -40 (°C) |
Inventory for the DR74-4R7-R by Eaton from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,807
|
|
Visit Site | |
|
★ Featured
|
52,000
|
2,210 x $0.16
|
Visit Site | |
| Arrow Europe |
3,300
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
49,500
|
|
Visit Site | |
| Newark |
584
|
|
Visit Site | |
| RS UK |
535
|
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| Sager |
|
1,100 x $0.86
|
Visit Site | |
| TME |
75
|
|
Visit Site | |
| TTI Europe |
28,600
|
|
Visit Site | |
| Verical |
1,100
|
1,100 x $0.51
|
Visit Site | |
| element14 Singapore |
584
|
|
Visit Site |
No issues have been reported for the DR74-4R7-R
