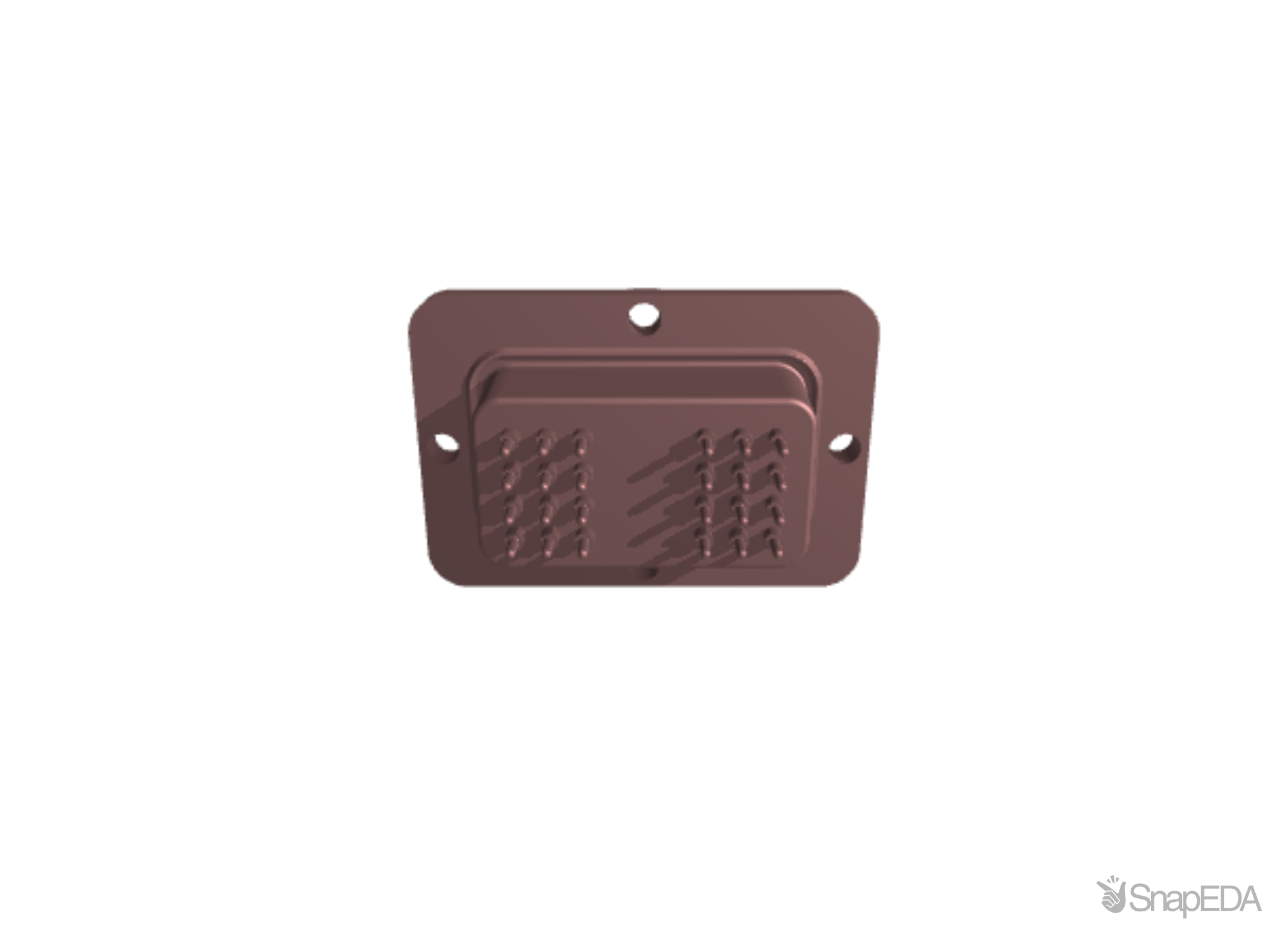

DRC10-24PA-A004
Connector Header Panel Mount, Through Hole 24 position 0.215" (5.46mm)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DRC10-24PA-A004 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DRC10-24PA-A004
| Part Name | DRC10-24PA-A004 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 5.46 |
| Packaging Type | Tray |
| Operating Voltage (V) | 250 |
| Number of Positions | 24 |
| PCB Mount Retention Type | Solder Tail |
| PCB Mount Retention | With |
| Connector System | Wire-to-Board |
| PCB Thickness (Recommended) | 1.57 |
| Operating Temperature (Max) | 110 |
| TE Internal Number | DRC10-24PA-A004 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Alignment | Without |
| Shielded | No |
| Number of Rows | 3 |
| Termination Method | Through Hole - Solder |
| Sealable | Yes |
| Hybrid Header | No |
| Mounting Orientation | Vertical/180 |
| Operating Temperature Range | -55 to 125 |
| Degree of Protection | IP68 |
| Mounting Holes | With |
| Locking Interface | With |
| Length | 3.05 |
| Pin Diameter | .059 |
| Voltage Rating (Max) (V) | 12 |
| Color | Black |
| UL Flammability Rating | None |
| Panel Mount Feature | With |
| Interface Plating | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
