DRC12-40PA

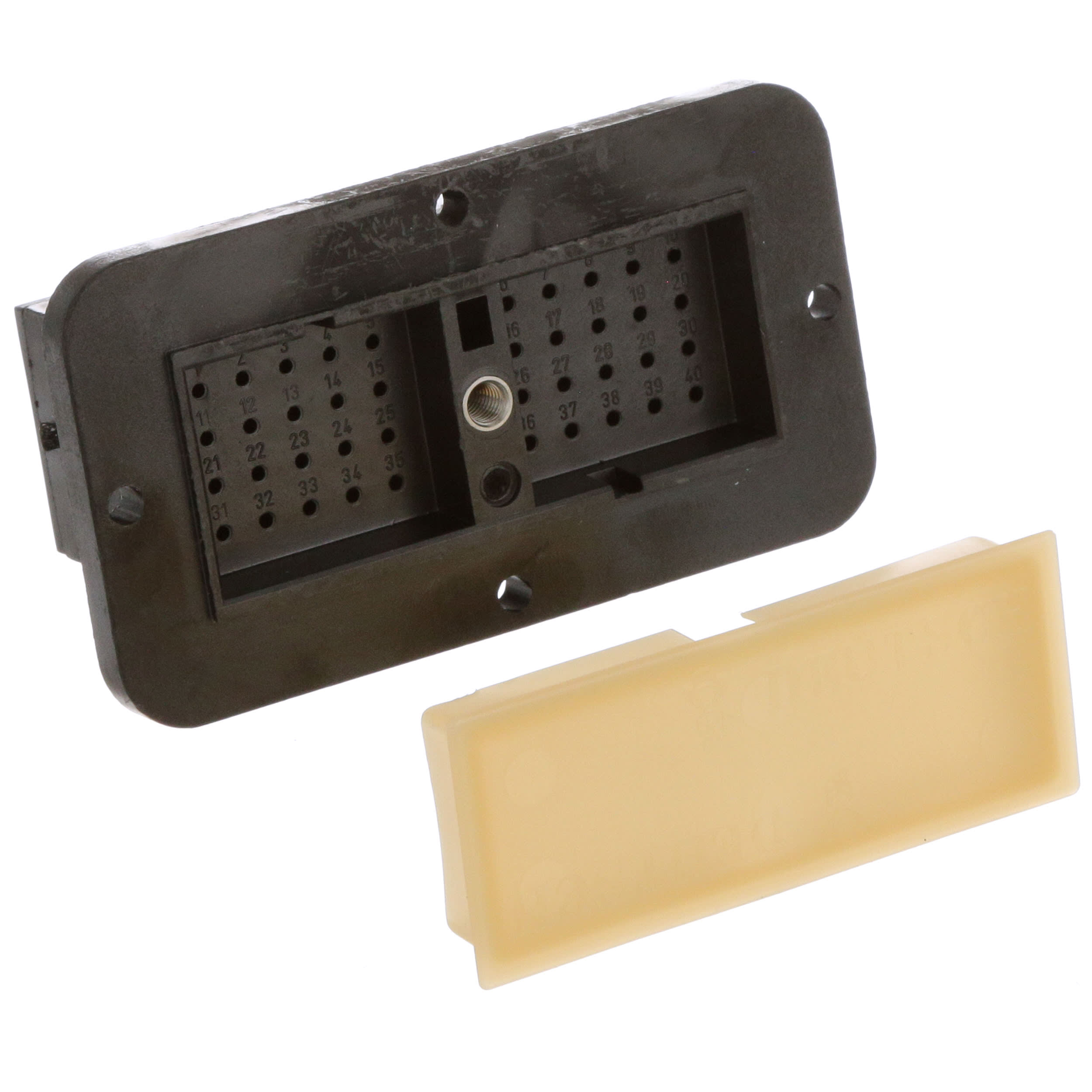

DC Connector, Male Terminal, 40 Position, 5.5mm Centerline, Sealable, DRC Series | TE Connectivity DRC12-40PA
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DRC12-40PA by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DRC12-40PA
| Part Name | DRC12-40PA |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 5.5 |
| Mounting Feature | Without |
| Width | 1.699 |
| Operating Voltage (V) | 250 |
| Connector Style | Housing for male terminals |
| Connector Position Assurance Capable | No |
| Number of Positions | 40 |
| Hybrid Connector | No |
| TE Internal Number | DRC12-40PA |
| Connector System | Wire-to-Wire |
| Number of Rows | 4 |
| Sealable | Yes |
| Terminal Position Assurance | No |
| Nominal Voltage Architecture (V) | 240 |
| Polarized | Yes |
| Operating Temperature Range | -55 – 125 |
| Degree of Protection | IP68 |
| Serviceable | Yes |
| Length | 2.098 |
| Cable Exit Angle | 180° |
| RoHS | True |
| Strain Relief | Add By Accessory |
| Color | Black |
| Body Material | PPS GF |
| Height | 97.54 |
| Primary Locking Feature | Integrated in Housing |
| Mating Pin Diameter | .059 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | DEUTSCH DRC |
| Number Of Contacts | 40 |
| Gender | Male |
