DRC23-24PB
SnapVerified
24 way DRC23 B key Receptacle with PCB mount and 90 degree molded pins, centerline pitch .172 inch/4.44 millimeters, and fits wire-to-board and/or wire-to-device connector systems. 20 AWG. Black.
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DRC23-24PB by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

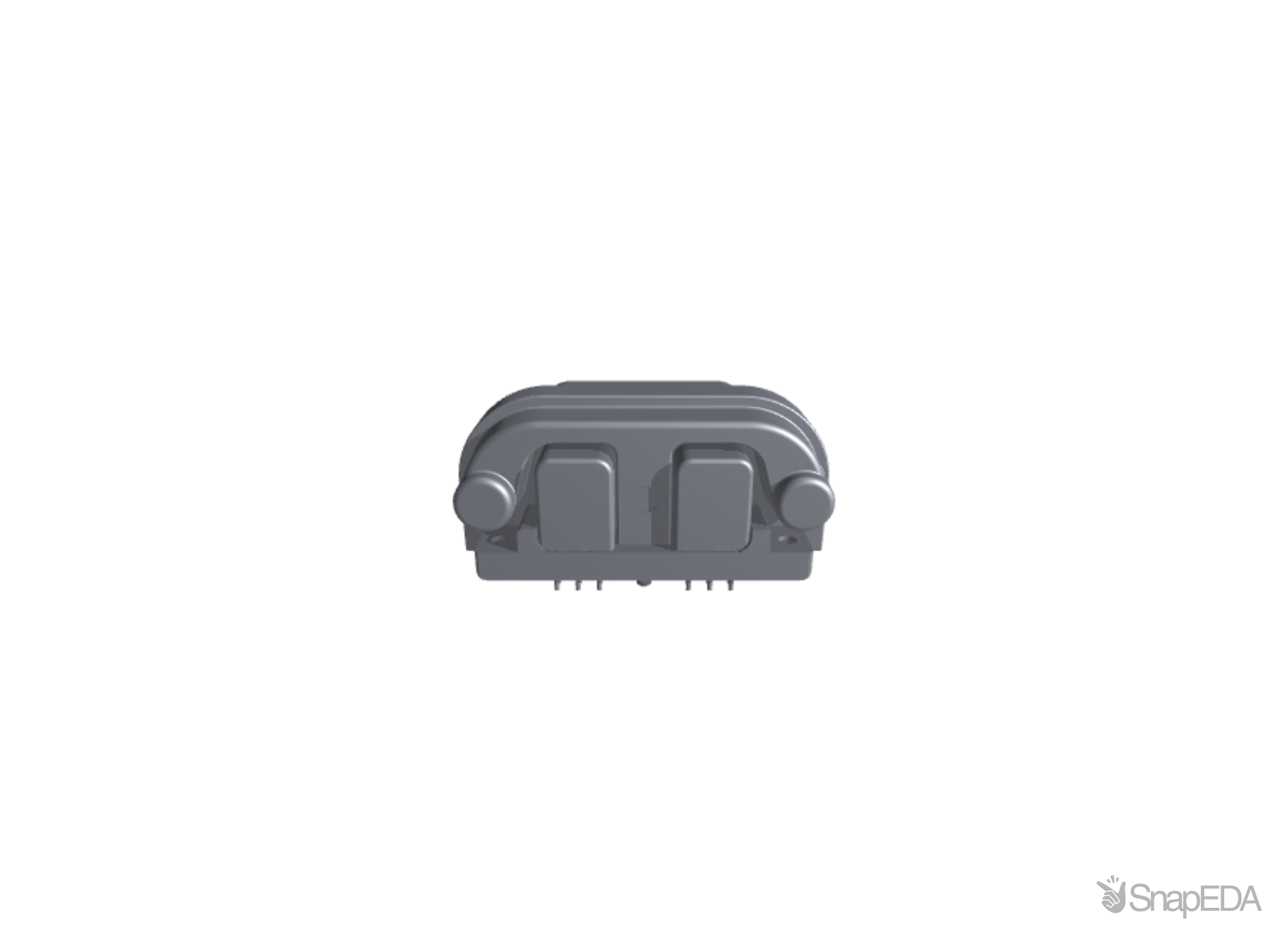

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DRC23-24PB
| Part Name | DRC23-24PB |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .174 |
| UL Flammability Rating | None |
| Operating Voltage (V) | 250 |
| Number of Positions | 24 |
| PCB Mount Retention Type | Solder Tail |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .062 |
| Operating Temperature (Max) | 158 |
| TE Internal Number | DRC23-24PB |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Wire-to-Board |
| Shielded | No |
| Number of Rows | 4 |
| Voltage Rating (Max) (V) | 12 |
| Termination Method | Through Hole - Solder |
| Sealable | Yes |
| Hybrid Header | No |
| Mounting Orientation | Horizontal/90 |
| Operating Temperature Range | -55 to 125 |
| Degree of Protection | IP68 |
| Mounting Holes | With |
| Locking Interface | With |
| Pin Diameter | 1 |
| RoHS | True |
| Color | Black |
| PCB Mount Alignment | With |
| Packaging Type | Tray |
| Panel Mount Feature | With |
| Interface Plating | Gold (Au) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the DRC23-24PB by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
64 x $36.05
|
Visit Site | |
|
★ Featured
|
46
|
|
Visit Site | |
| Onlinecomponents |
24
|
|
Visit Site |
No issues have been reported for the DRC23-24PB
If you experienced any issues with the symbol or footprint, please report it.
