DS04-254-1S-05BK

Name: DS04-254-1S-05BK
Brand: Same Sky

SnapVerified

5 Position, Through Hole, 2.54 mm Pitch, Raised Slide Actuator, Flat Bottom, Short Pin, DIP Switch

Availability: In Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the DS04-254-1S-05BK by Same Sky and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Free samples

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

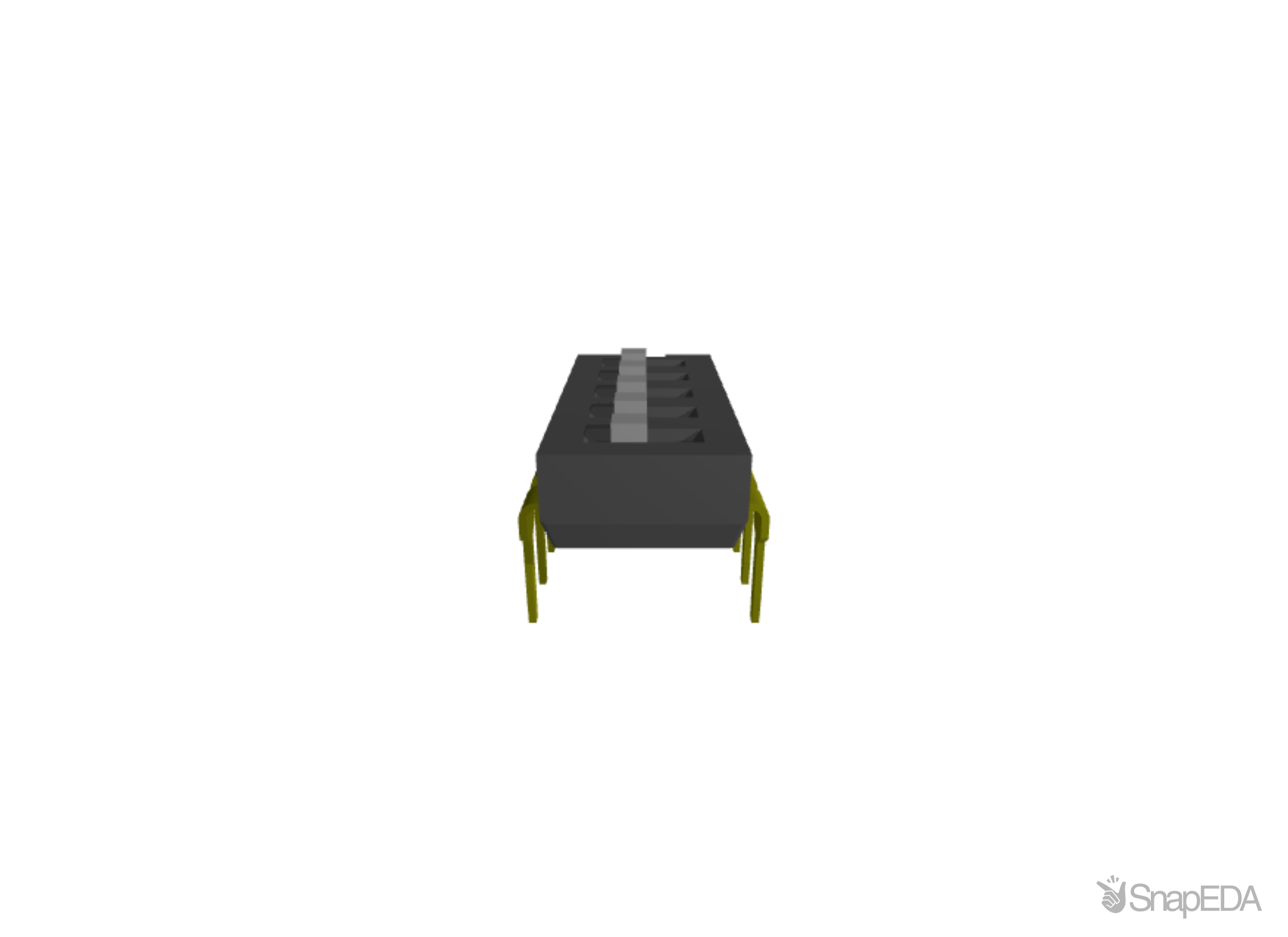

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the DS04-254-1S-05BK

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the DS04-254-1S-05BK

Part Name	DS04-254-1S-05BK
Manufacturer	Same Sky
Washable	No
RoHS and REACH Link	https://www.cuidevices.com/product/resource/material-compliance/ds04-254-1s-05bk
Operating Temp MIN (°C)	-40
Width (mm)	6.2
Dimensions LxWxH (mm)	13.7 x 6.2 x 3.66
Number of Positions	5
Switching Current Rating (mA) (A)	25
Actuator Level	Raised
Operating Temp MAX (°C)	85
Bottom	Flat
Switching Voltage Rating (Vdc) (V)	24
Pitch (mm)	2.54
Cap	No
Non-Switching Voltage Rating (Vdc) (V)	50
Length (mm)	13.7
Termination	PC Pin
RoHS	True
Height (mm)	3.66
Orientation	Horizontal
Pin	Short
Mounting Style	Through Hole
Actuator Type	Slide
Dimensions LxWxH (in)	0.54 x 0.24 x 0.14
Non-Switching Current Rating (mA) (A)	100
Switch Type	DIP
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

Inventory for the DS04-254-1S-05BK by Same Sky from major distributors.

Supplier	Quantity	Price	Purchase
★ Featured		2,013 x $0.45		Visit Site
