DS92LV1224TMSA
Ic Deserializer 10-Bit 28-Ssop - Ds92lv1224tmsa/Nopb
Availability: Out of Stock
Package Type: SSOP-28
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DS92LV1224TMSA by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

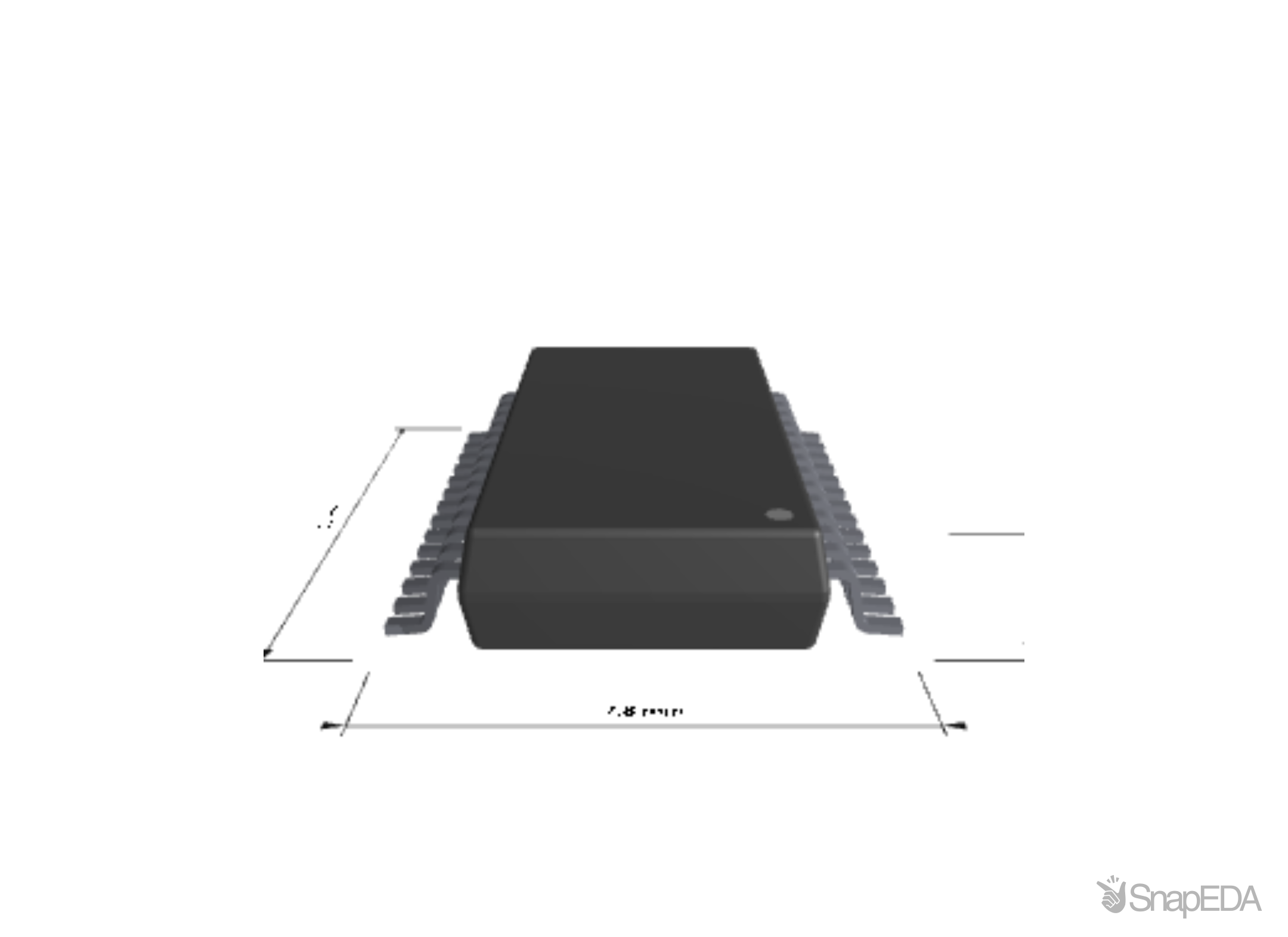

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DS92LV1224TMSA
| Part Name | DS92LV1224TMSA |
| Manufacturer | Texas Instruments |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Pin Count | 28 |
| Differential Input Low Threshold Voltage (V) | -50 (mV) |
| Transmission Data Rate | 660 (Mbps) |
| Dimensions | 10.07 x 5.38 x 2 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Minimum Operating Supply Voltage (V) | 3 V |
| Number Of Drivers | 10 |
| Height | 2 (mm) |
| Width | 5.38 (mm) |
| Length | 10.07 (mm) |
| Package Type | SSOP |
| Output Type | LVDS |
| Input Type | LVDS |
| Differential Input High Threshold Voltage (V) | 50 (mV) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Number Of Elements Per Chip | 1 |
No issues have been reported for the DS92LV1224TMSA
