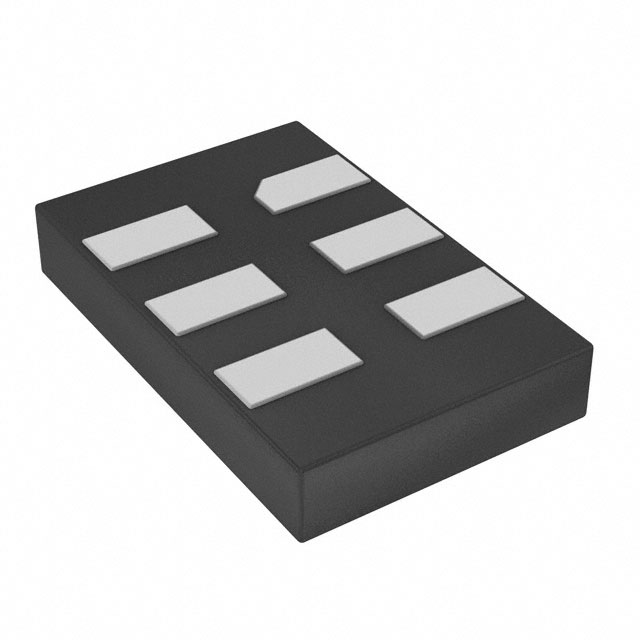

DSC1124BI1-100.0000T
Mems Oscillator, High Perf, Single Hcsl Output, -40C-85C, 50Ppm, 6 Vdfn 3.2X5.0X0.9Mm T/R
Availability: In Stock
Package Type: SMD-6
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DSC1124BI1-100.0000T by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

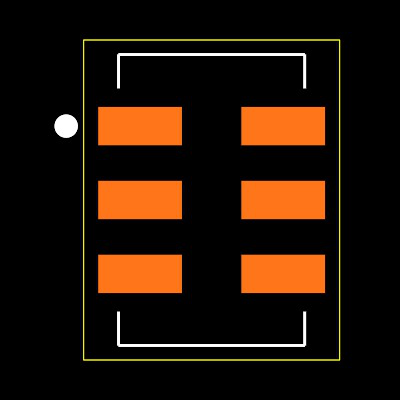

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DSC1124BI1-100.0000T
| Part Name | DSC1124BI1-100.0000T |
| Manufacturer | Microchip |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 5 x 3.2 x 0.85 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Frequency | 100 (MHz) |
| Oscillator Type | MEMS |
| Height | 0.85 (mm) |
| Frequency Stability | ±50 (ppm) |
| Width | 3.2 (mm) |
| Length | 5 (mm) |
| Package Type | CDFN |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Operating Temperature | 85 (°C) |
| Pin Count | 6 |
