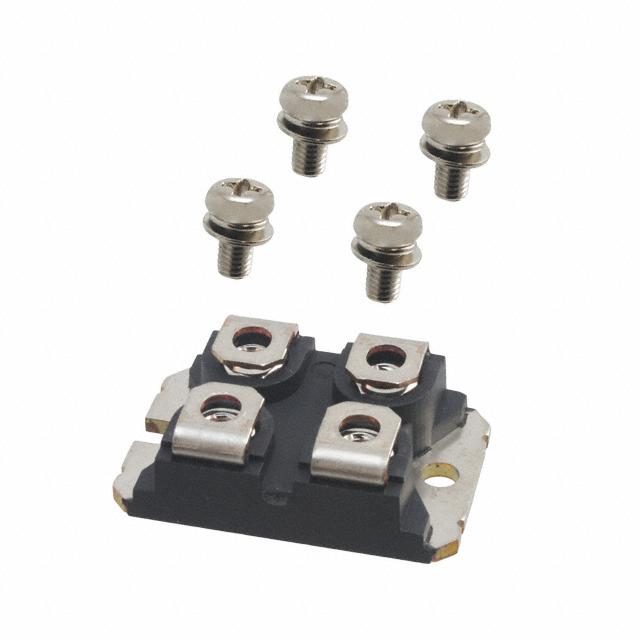

DSEI2X61-10B
Diode Array 2 Independent Standard 1000 V 60A Chassis Mount SOT-227-4, miniBLOC
Availability: In Stock
Package Type: SOT-227
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DSEI2X61-10B by IXYS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

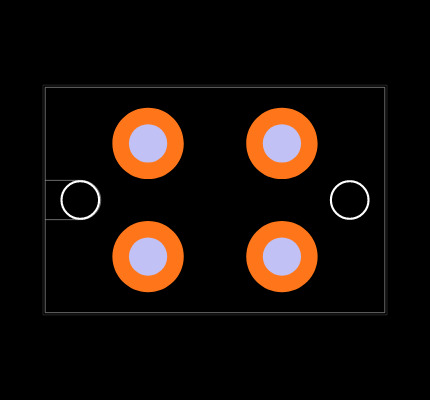

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DSEI2X61-10B
| Part Name | DSEI2X61-10B |
| Manufacturer | IXYS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Panel Mount |
| Maximum Continuous Forward Current (A) | 60 (A) |
| Peak Reverse Recovery Time | 50 (ns) |
| Peak Non-Repetitive Forward Surge Current (A) | 540 (A) |
| Diode Technology | Silicon Junction |
| Maximum Forward Voltage Drop (V) | 2.3 (V) |
| Rectifier Type | Switching |
| Package Type | SOT-227B |
| Peak Reverse Repetitive Voltage (V) | 1000 (V) |
| Diode Type | Rectifier |
| Diode Configuration | Isolated |
| Pin Count | 4 |
| Number Of Elements Per Chip | 2 |
Inventory for the DSEI2X61-10B by IXYS from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
177
|
|
Visit Site | |
|
★ Featured
|
506
|
|
Visit Site | |
|
★ Featured
|
1,929
|
12 x $31.26
|
Visit Site | |
| Verical |
50
|
2 x $40.84
|
Visit Site |
No issues have been reported for the DSEI2X61-10B
If you experienced any issues with the symbol or footprint, please report it.
