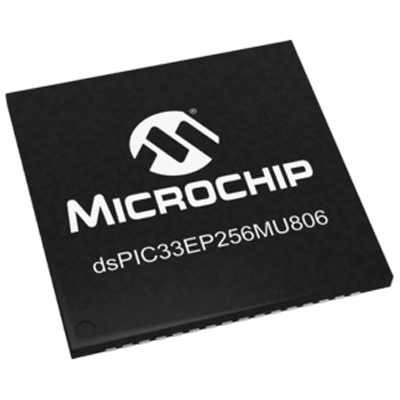

DSPIC33EP256MU806-I/MR
dsPIC33EP256MU806-I/MR,16bit dsPIC Microcontroller,70MHz,280kb Flash,64-Pin QFN | Microchip Technology Inc. DSPIC33EP256MU806-I/MR
Availability: Out of Stock
Package Type: QFN-64
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DSPIC33EP256MU806-I/MR by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DSPIC33EP256MU806-I/MR
| Part Name | DSPIC33EP256MU806-I/MR |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 9 x 9 x 0.9 (mm) |
| Usb Channels | 1 |
| Width | 9 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 2 |
| Program Memory Size | 280 kB |
| Number Of Spi Channels | 4 |
| Ram Size | 28 kB |
| Data Bus Width | 16 (bit) |
| Instruction Set Architecture | C |
| Program Memory Type | Flash |
| Package Type | QFN |
| Adcs | 24 x 12/24 bit |
| Number Of Pwm Units | 1 x 16 bit |
| Number Of Adc Units | 2 |
| Maximum Operating Temperature | +85 °C |
| Maximum Frequency | 70 (MHz) |
| Family Name | dsPIC33EP |
| Device Core | dsPIC |
| Length | 9 (mm) |
| Number Of Ethernet Channels | 1 |
| Number Of Lin Channels | 0 |
| Pin Count | 64 |
| Pulse Width Modulation | 8 (1 x 8.32 ns) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 2 |
| Height | 0.9 (mm) |
| Typical Operating Supply Voltage (V) | 3 → 3.6 V |
| Maximum Number Of Ethernet Channels | 1 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 0 |
| Number Of Uart Channels | 4 |
No issues have been reported for the DSPIC33EP256MU806-I/MR
