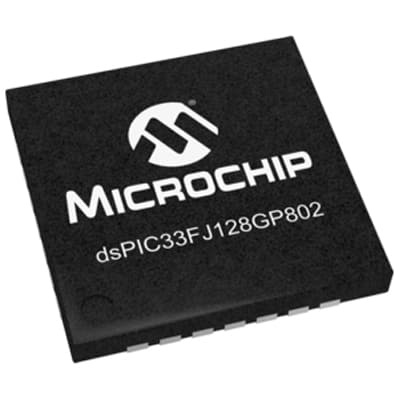

DSPIC33FJ128GP802-E/MM
16-bit DSC, 128KB Flash,CAN,DMA,40 MIPS,nanoWatt28 QFN-S 6x6x0.9mm TUBE | Microchip Technology Inc. DSPIC33FJ128GP802-E/MM
Availability: In Stock
Package Type: QFN-28
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DSPIC33FJ128GP802-E/MM by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DSPIC33FJ128GP802-E/MM
| Part Name | DSPIC33FJ128GP802-E/MM |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Timers | 2 |
| Dimensions | 6 x 6 x 0.95 (mm) |
| Program Memory Type | Flash |
| Width | 6 (mm) |
| Adc Resolution | 12 (bit) |
| Number Of Can Channels | 1 |
| Program Memory Size | 128 kB |
| Automotive Standard | AEC-Q100 |
| Number Of Spi Channels | 2 |
| Data Bus Width | 16 (bit) |
| Instruction Set Architecture | Modified Harvard |
| Pwm Channels | 4 |
| Package Type | QFN |
| Maximum Frequency | 40 (MHz) |
| Device Million Instructions Per Second | 40 (MIPS) |
| Number Of Pwm Units | 1 |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +125 °C |
| Adcs | 1 (10 x 12 bit) |
| Length | 6 (mm) |
| Timer Resolution | 16 bit, 32 (bit) |
| Timers | 1 (2 x 32 bit), 1 (5 x 16 bit) |
| Ram Size | 16 kB |
| Pin Count | 28 |
| Adc Channels | 10 |
| Pulse Width Modulation | 1 (4 Channel) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 1 |
| Series | DSPIC |
| Height | 0.95 (mm) |
| Typical Operating Supply Voltage (V) | 3.6 V |
| Numeric And Arithmetic Format | ALU |
| Minimum Operating Temperature | -40 °C |
| Number Of Uart Channels | 2 |
Inventory for the DSPIC33FJ128GP802-E/MM by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,706
|
|
Visit Site | |
|
★ Featured
|
239
|
|
Visit Site | |
|
★ Featured
|
8,862
|
42 x $8.34
|
Visit Site | |
| Arrow Electronics |
14
|
61 x $6.89
|
Visit Site | |
| Onlinecomponents |
913
|
|
Visit Site | |
| Verical |
910
|
|
Visit Site |
No issues have been reported for the DSPIC33FJ128GP802-E/MM
