DSPIC33FJ128MC804-I/ML

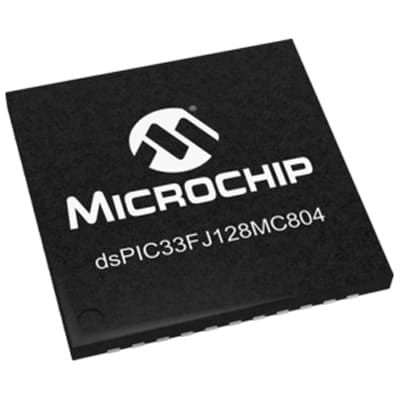

dsPIC33FJ128MC804-I/ML,16bit Digi Signal Processor 40MHz 128kb Flash 44-Pin QFN | Microchip Technology Inc. DSPIC33FJ128MC804-I/ML
Availability: Out of Stock
Package Type: QFN-44
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DSPIC33FJ128MC804-I/ML by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

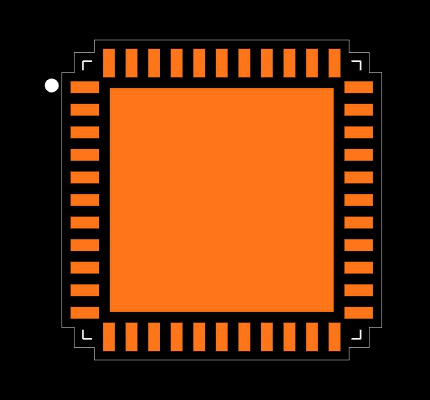

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DSPIC33FJ128MC804-I/ML
| Part Name | DSPIC33FJ128MC804-I/ML |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Timers | 5 |
| Dimensions | 8 x 8 x 0.88 (mm) |
| Width | 8 (mm) |
| Number Of Can Channels | 1 |
| Program Memory Size | 128 kB |
| Number Of Spi Channels | 2 |
| Data Bus Width | 16 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | QFN |
| Maximum Frequency | 40 (MHz) |
| Maximum Operating Temperature | +85 °C |
| Adcs | 9-ch x 10 bit, 9-ch x 12 bit |
| Length | 8 (mm) |
| Ram Size | 16 kB |
| Pin Count | 44 |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 1 |
| Height | 0.88 (mm) |
| Typical Operating Supply Voltage (V) | 3.3 V |
| Minimum Operating Temperature | -40 °C |
| Number Of Uart Channels | 2 |
No issues have been reported for the DSPIC33FJ128MC804-I/ML
If you experienced any issues with the symbol or footprint, please report it.
