DSPIC33FJ256GP710A-I/PF
Digital Signal Processors, DSP, DSC 16Bit 40MIPS 256KB Flash | Microchip Technology Inc. DSPIC33FJ256GP710A-I/PF
Availability: In Stock
Package Type: TQFP-100
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DSPIC33FJ256GP710A-I/PF by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

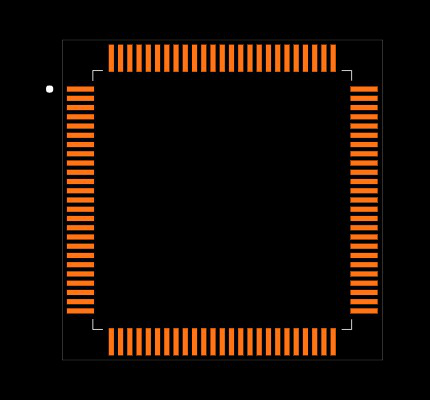

Footprint
No web preview
This Footprint is Available for

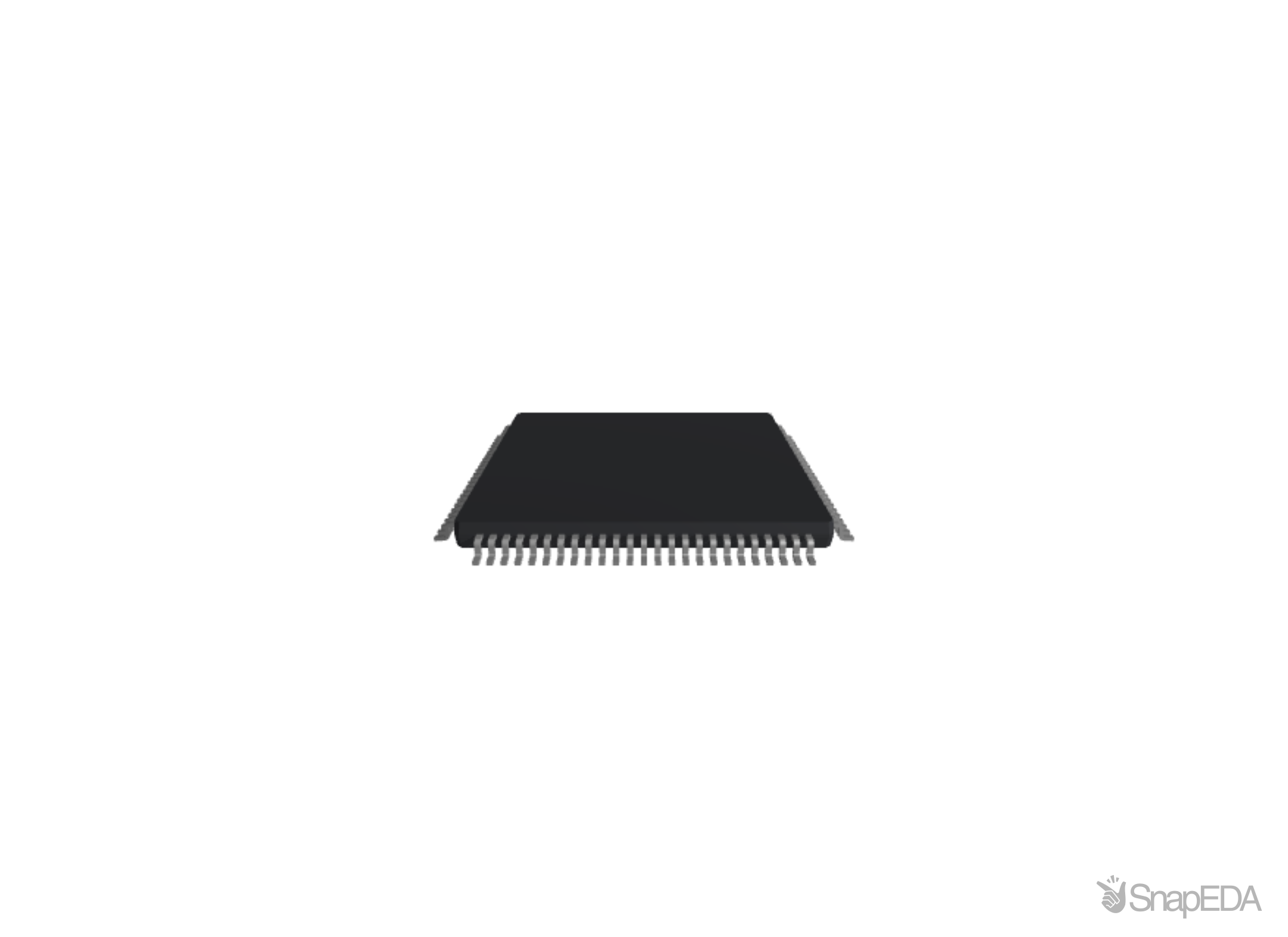

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DSPIC33FJ256GP710A-I/PF
| Part Name | DSPIC33FJ256GP710A-I/PF |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Timers | 9 |
| Pwm Resolution | 16 (bit) |
| Dimensions | 14 x 14 x 1.05 (mm) |
| Usb Channels | 2 x Host |
| Width | 14 (mm) |
| Adc Resolution | 10 bit, 12 (bit) |
| Number Of Can Channels | 2 |
| Program Memory Size | 256 kB |
| Number Of Spi Channels | 2 |
| Data Bus Width | 16 (bit) |
| Instruction Set Architecture | Harvard |
| Program Memory Type | Flash |
| Package Type | TQFP |
| Maximum Frequency | 40 (MHz) |
| Device Million Instructions Per Second | 40 (MIPS) |
| Number Of Pwm Units | 8 |
| Number Of Adc Units | 2 |
| Maximum Operating Temperature | +85 °C |
| Adcs | 32-ch x 10-bit, 32-ch x 12-bit |
| Length | 14 (mm) |
| Timer Resolution | 16 (bit) |
| Timers | 9 x 8 bit |
| Ram Size | 30 kB |
| Pin Count | 100 |
| Adc Channels | 32 |
| Pulse Width Modulation | 8 x 16 bit |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 2 |
| Height | 1.05 (mm) |
| Typical Operating Supply Voltage (V) | 3.3 V |
| Numeric And Arithmetic Format | Fixed Point, Floating Point |
| Minimum Operating Temperature | -40 °C |
| Number Of Uart Channels | 2 |
Inventory for the DSPIC33FJ256GP710A-I/PF by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,020
|
|
Visit Site | |
|
★ Featured
|
5,808
|
28 x $12.47
|
Visit Site | |
| Onlinecomponents |
666
|
|
Visit Site | |
| Verical |
39
|
39 x $20.06
|
Visit Site |
No issues have been reported for the DSPIC33FJ256GP710A-I/PF
If you experienced any issues with the symbol or footprint, please report it.
