DT04-12PB-P031
Housing for male terminals DT RECP ASM 12 POS
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DT04-12PB-P031 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

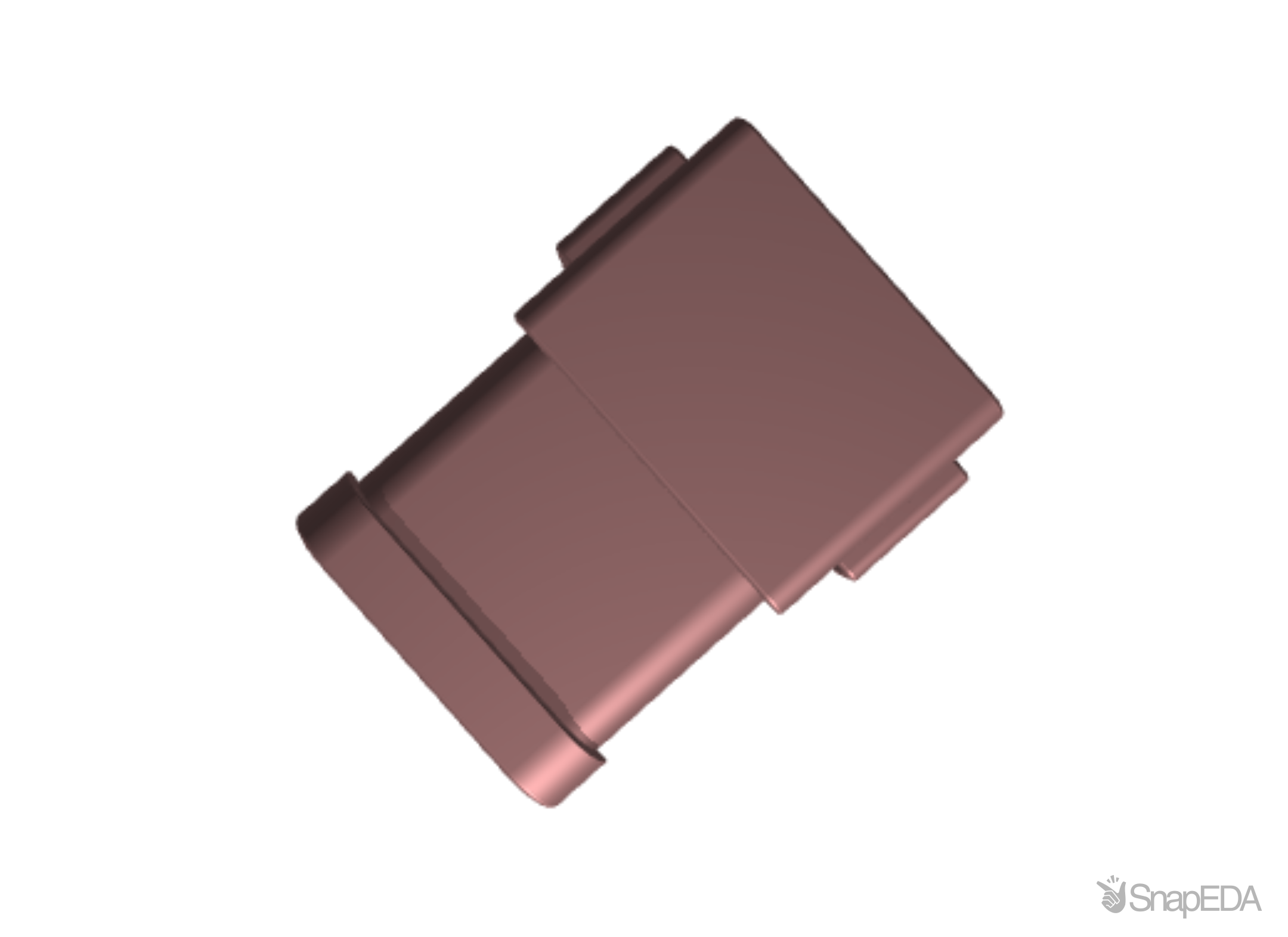

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DT04-12PB-P031
| Part Name | DT04-12PB-P031 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 4.5 |
| Circuit Application | Power & Signal |
| Mounting Feature | Without |
| Width | .897 |
| Connector Style | Housing for male terminals |
| Number of Positions | 12 |
| Hybrid Connector | No |
| TE Internal Number | DT04-12PB-P031 |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Strain Relief | Add By Accessory |
| Terminal Position Assurance | No |
| Polarized | Yes |
| Operating Temperature Range | -55 – 125 |
| Degree of Protection | IP68 |
| Packaging Method | Package |
| Serviceable | No |
| Body Material | PA GF |
| Length | 40.56 |
| Sealable | Yes |
| Color | Black |
| UL Flammability Rating | 20mm Flame Test per Standard UL-94 |
| Height | 51.89 |
| Contact Current Rating (Max) (A) | 13 |
| Primary Locking Feature | Integrated in Housing |
| Connector Code | B |
| Mating Pin Diameter | 1.5 |
| Cable Exit Angle | 180° |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
