DT04-12PB

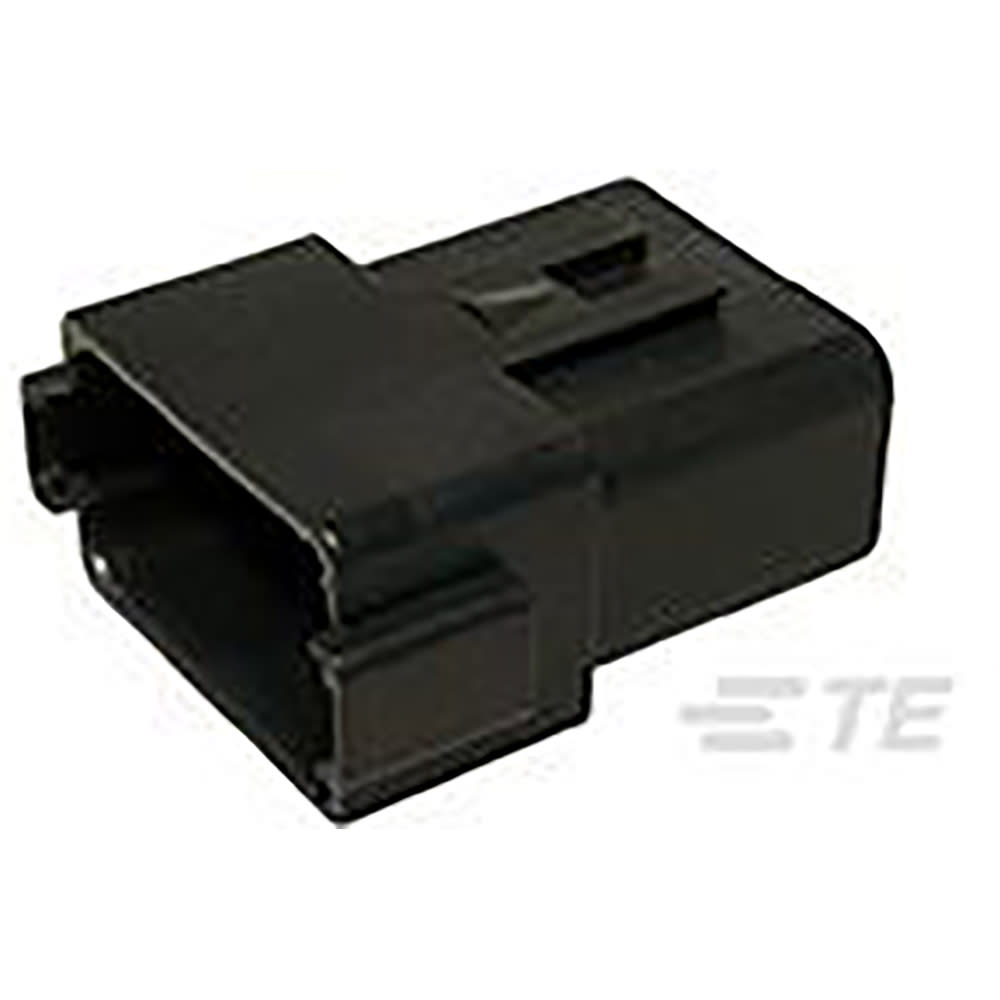

Automotive Receptacle Housing, 9.12mm.12-Pos, Black, DT Series | TE Connectivity DT04-12PB
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DT04-12PB by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

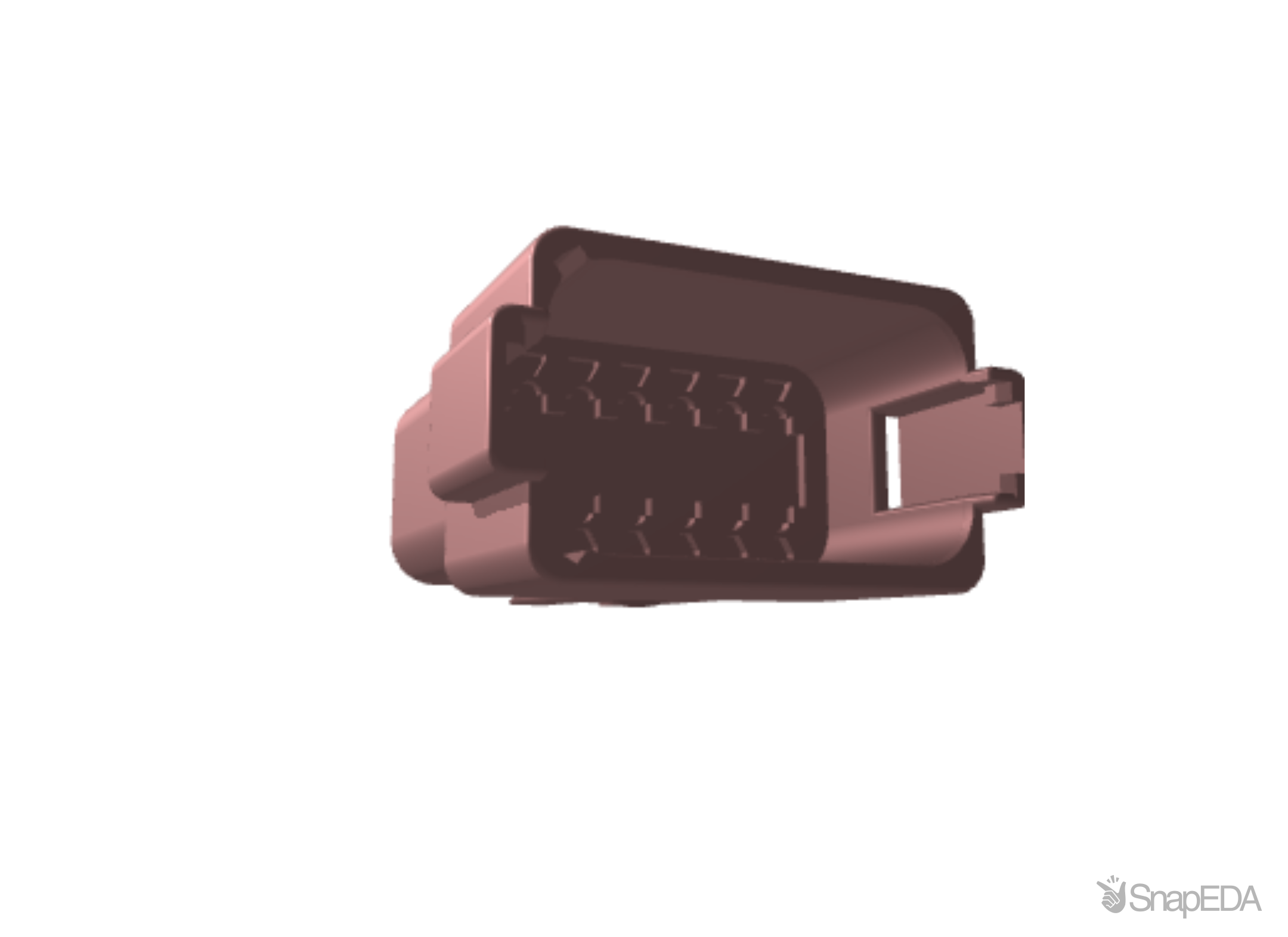

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DT04-12PB
| Part Name | DT04-12PB |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 4.5 |
| Circuit Application | Power & Signal |
| Mounting Feature | Without |
| UL Flammability Rating | 20mm Flame Test per Standard UL-94 |
| Width | 22.25 |
| Connector Style | Housing for male terminals |
| Number of Positions | 12 |
| Hybrid Connector | No |
| TE Internal Number | DT04-12PB |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Strain Relief | Add By Accessory |
| Terminal Position Assurance | No |
| Polarized | Yes |
| Operating Temperature Range | -67 – 257 |
| Degree of Protection | IP68 |
| Packaging Method | Package |
| Serviceable | Yes |
| Body Material | PA GF |
| Cable Exit Angle | 180° |
| RoHS | True |
| Sealable | Yes |
| Color | Black |
| Length | 1.597 |
| Height | 1.808 |
| Contact Current Rating (Max) (A) | 13 |
| Primary Locking Feature | Integrated in Housing |
| Connector Code | B |
| Mating Pin Diameter | .059 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | DEUTSCH DT |
| Number Of Contacts | 12 |
| Gender | Male |
Inventory for the DT04-12PB by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
495
|
|
Visit Site | |
|
★ Featured
|
2,253
|
|
Visit Site | |
| Onlinecomponents |
1,774
|
|
Visit Site | |
| Verical |
105
|
45 x $4.36
|
Visit Site |
No issues have been reported for the DT04-12PB
If you experienced any issues with this part, please report it.
