DT06-4S-CP01
DT PLUG 4#16 SKT
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DT06-4S-CP01 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

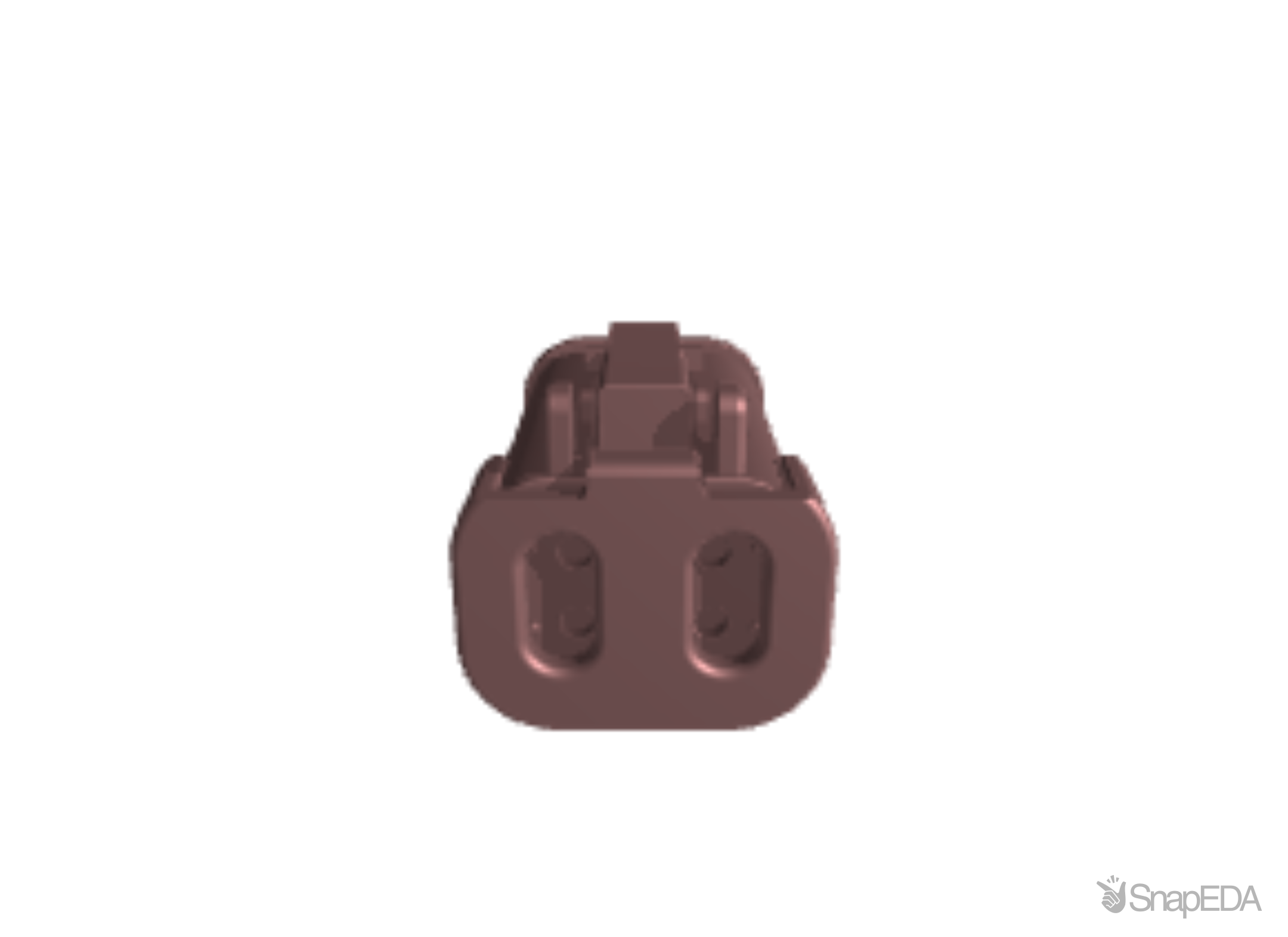

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DT06-4S-CP01
| Part Name | DT06-4S-CP01 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .175 |
| Circuit Application | Power & Signal |
| Mounting Feature | Without |
| Width | 20.83 |
| Connector Style | Housing for female terminals |
| Number of Positions | 4 |
| Operating Temperature Range | -67 – 257 |
| TE Internal Number | DT06-4S-CP01 |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Sealable | Yes |
| Body Material | PA GF |
| Terminal Position Assurance | No |
| Polarized | Yes |
| Hybrid Connector | No |
| Degree of Protection | IP68 |
| Packaging Method | Package |
| Packaging Quantity | 1 |
| Length | 1.328 |
| Serviceable | Yes |
| RoHS | True |
| Color | Black |
| UL Flammability Rating | 20mm Flame Test per Standard UL-94 |
| Height | 19.51 |
| Contact Current Rating (Max) (A) | 13 |
| Primary Locking Feature | Integrated in Housing |
| Mating Pin Diameter | .059 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
