DT13-2P
PCB Header, Vertical, PCB Mount Header, Contacts 2, Gray, Nickel, DT Series | TE Connectivity DT13-2P
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DT13-2P by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

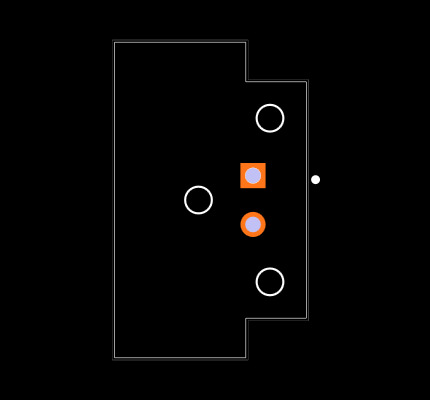

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DT13-2P
| Part Name | DT13-2P |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .215 |
| UL Flammability Rating | None |
| Width | 1.39 |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Solder Tail |
| PCB Mount Retention | With |
| Operating Temperature (Max) | 248 |
| TE Internal Number | DT13-2P |
| Number of Positions | 2 |
| Connector System | Wire-to-Board |
| Shielded | No |
| Number of Rows | 1 |
| Voltage Rating (Max) (V) | 12 |
| Termination Method | Through Hole - Solder |
| Sealable | Yes |
| Number of Sections | 2 |
| Nominal Voltage Architecture (V) | 90 |
| Mounting Orientation | Horizontal/90 |
| Operating Temperature Range | -55 to 125 |
| Degree of Protection | IP68 |
| Mounting Holes | With |
| Locking Interface | With |
| Packaging Quantity | 200 |
| Length | 1.211 |
| Pin Diameter | 1.5 |
| RoHS | True |
| Color | Gray |
| Hybrid Header | No |
| PCB Mount Alignment | With |
| Packaging Type | Box |
| Panel Mount Feature | With |
| Interface Plating | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the DT13-2P by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
66
|
|
Visit Site |
No issues have been reported for the DT13-2P
If you experienced any issues with the symbol or footprint, please report it.
