DT13-4P
SnapVerified
DT13 Series 4.44mm Pitch 4 Way 2 Row Right Angle PCB Header Solder Termination | TE Connectivity DT13-4P
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DT13-4P by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

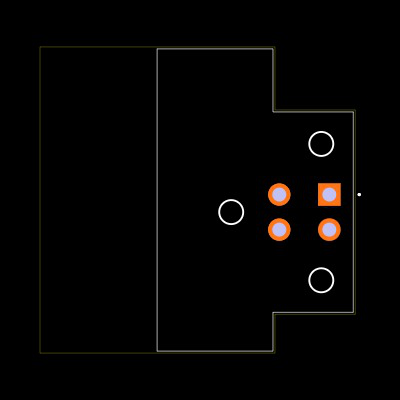

Footprint
No web preview
This Footprint is Available for

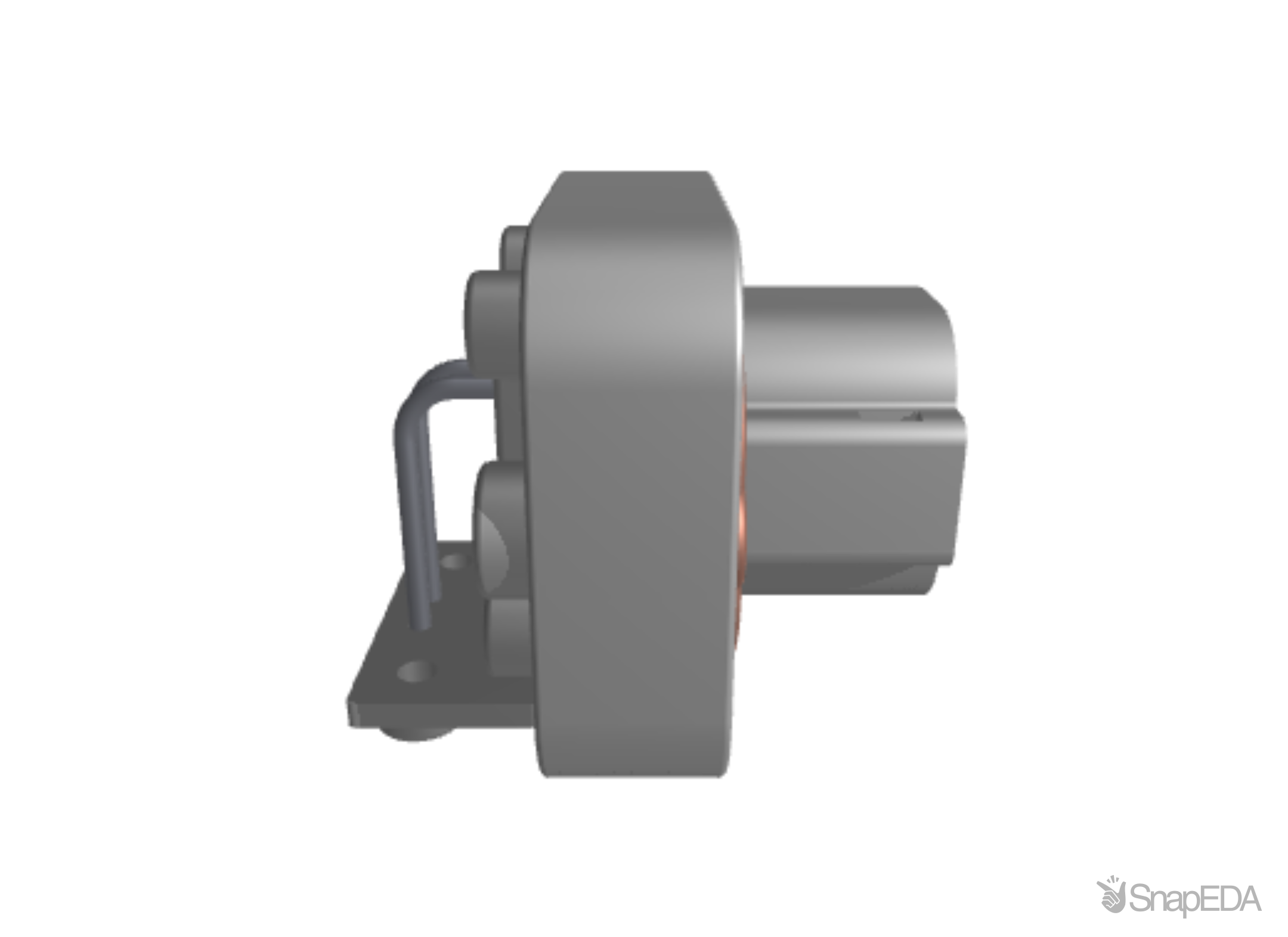

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DT13-4P
| Part Name | DT13-4P |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 4.44 |
| Packaging Type | Box |
| Width | 38.35 |
| Operating Voltage (V) | 250 |
| Number of Positions | 4 |
| PCB Mount Retention Type | Solder Tail |
| PCB Mount Retention | With |
| Connector System | Wire-to-Device |
| Operating Temperature (Max) | 248 |
| TE Internal Number | DT13-4P |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Alignment | With |
| Shielded | No |
| Number of Rows | 2 |
| RoHS | True |
| Locking Interface | With |
| Sealable | Yes |
| Number of Sections | 2 |
| Nominal Voltage Architecture (V) | 90 |
| Mounting Orientation | Horizontal/90 |
| Operating Temperature Range | -55 to 125 |
| Degree of Protection | IP68 |
| Mounting Holes | With |
| Termination Method | Through Hole - Solder |
| Packaging Quantity | 200 |
| Length | 1.555 |
| Pin Diameter | 1.5 |
| Voltage Rating (Max) (V) | 12 |
| Color | Gray |
| Hybrid Header | No |
| UL Flammability Rating | None |
| Panel Mount Feature | With |
| Interface Plating | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
