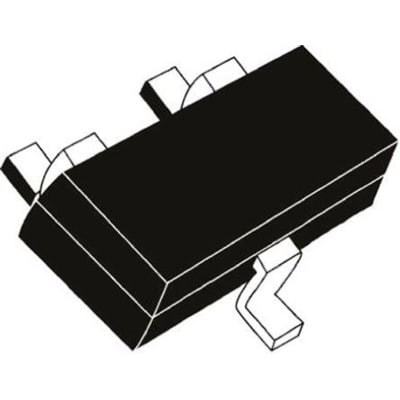

DTC143EKAT146
ROHM, DTC143EKAT146 NPN Digital Transistor, 100mA 4.7 kOhm, Ratio Of 1,3-Pin SMT | ROHM Semiconductor DTC143EKAT146
Availability: In Stock
Package Type: SOT-346
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DTC143EKAT146 by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

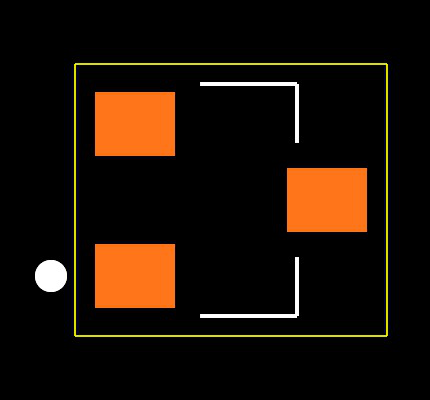

Footprint
No web preview
This Footprint is Available for

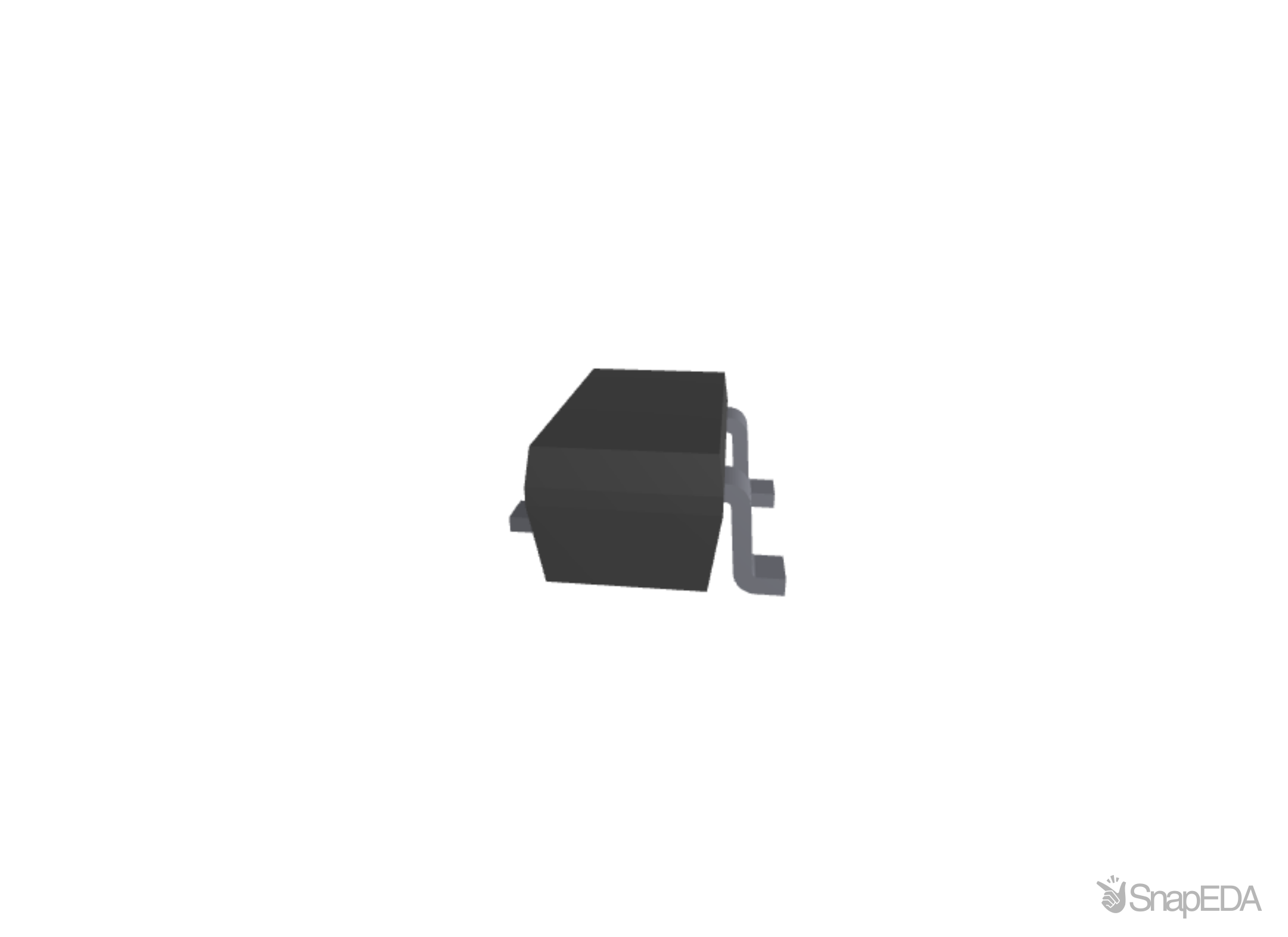

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DTC143EKAT146
| Part Name | DTC143EKAT146 |
| Manufacturer | Rohm |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Dc Current Gain (A) | 20 |
| Transistor Type | NPN |
| Dimensions | 2.9 x 1.6 x 1.1 (mm) |
| Mounting Type | Surface Mount |
| Maximum Dc Collector Current (A) | 100 mA |
| Package Type | SMT |
| Number Of Elements Per Chip | 1 |
| Base Emitter Resistor | 4.7 (kΩ) |
| Typical Resistor Ratio | 1 |
| Typical Input Resistor | 4.7 kΩ |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
| Transistor Configuration | Single |
