DTM04-6P-EE04
6 way DTM high temp Receptacle. Housing for male terminals, with mating pin diameter .039 inch/1 millimeter. 16-22 AWG. Black.
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DTM04-6P-EE04 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

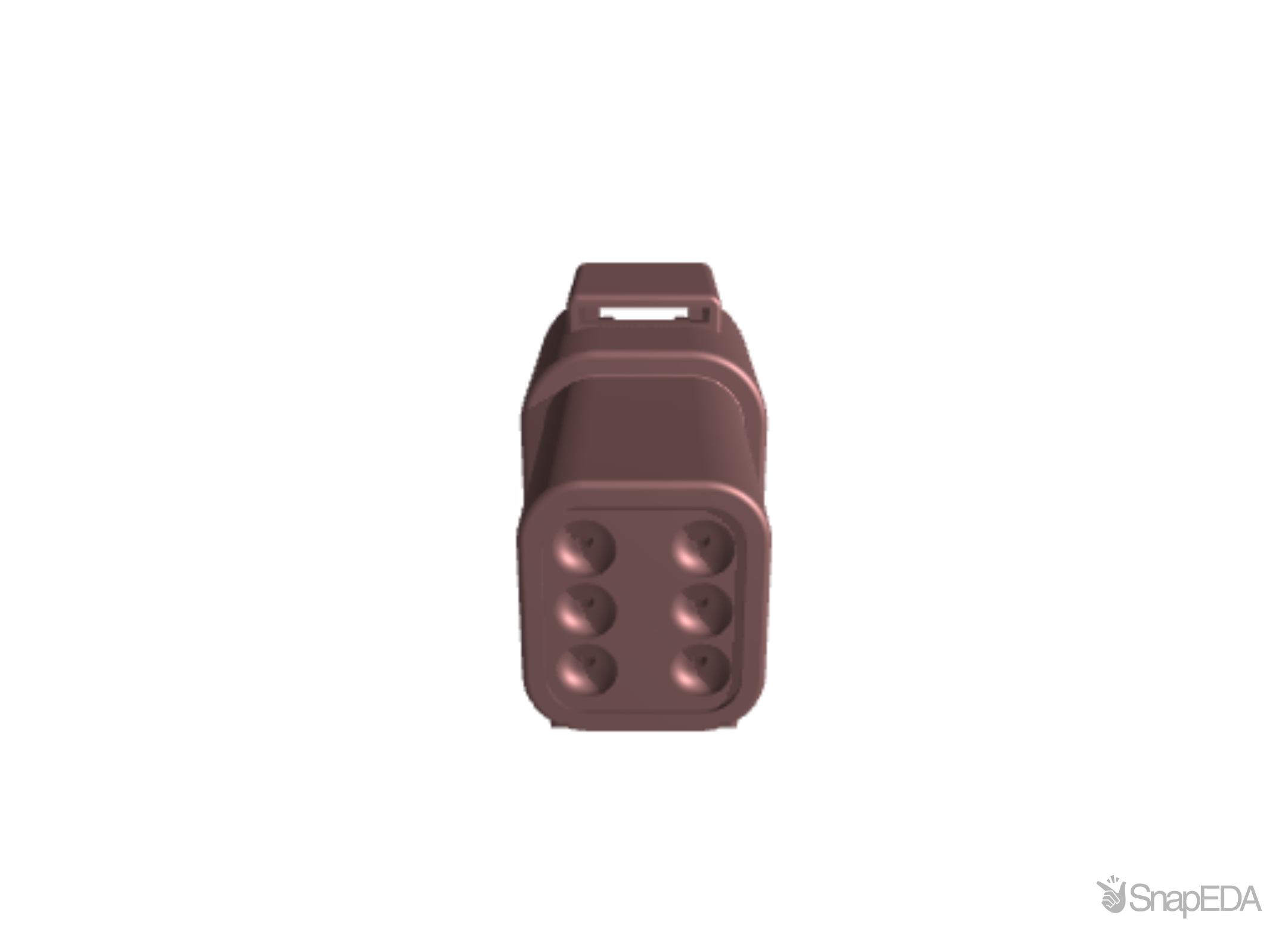

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DTM04-6P-EE04
| Part Name | DTM04-6P-EE04 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .157 |
| Mounting Feature | Without |
| Width | .756 |
| Operating Voltage (V) | 250 |
| Connector Style | Housing for male terminals |
| Connector Position Assurance Capable | No |
| Number of Positions | 6 |
| Operating Temperature Range | -67 – 302 |
| TE Internal Number | DTM04-6P-EE04 |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Sealable | Yes |
| Terminal Position Assurance | No |
| Nominal Voltage Architecture (V) | 12 |
| Polarized | Yes |
| Hybrid Connector | No |
| Degree of Protection | IP68 |
| Serviceable | Yes |
| Length | 43.69 |
| Cable Exit Angle | 180° |
| RoHS | True |
| Strain Relief | Add By Accessory |
| Color | Black |
| Body Material | PA GF |
| Height | .937 |
| Contact Current Rating (Max) (A) | 7.5 |
| Primary Locking Feature | Integrated in Housing |
| Mating Pin Diameter | .039 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the DTM04-6P-EE04 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
288
|
|
Visit Site | |
|
★ Featured
|
163
|
|
Visit Site | |
|
★ Featured
|
34,293
|
|
Visit Site | |
| Onlinecomponents |
390
|
|
Visit Site | |
| Verical |
290
|
|
Visit Site |
No issues have been reported for the DTM04-6P-EE04
If you experienced any issues with this part, please report it.
