DTM06-08SA-E007

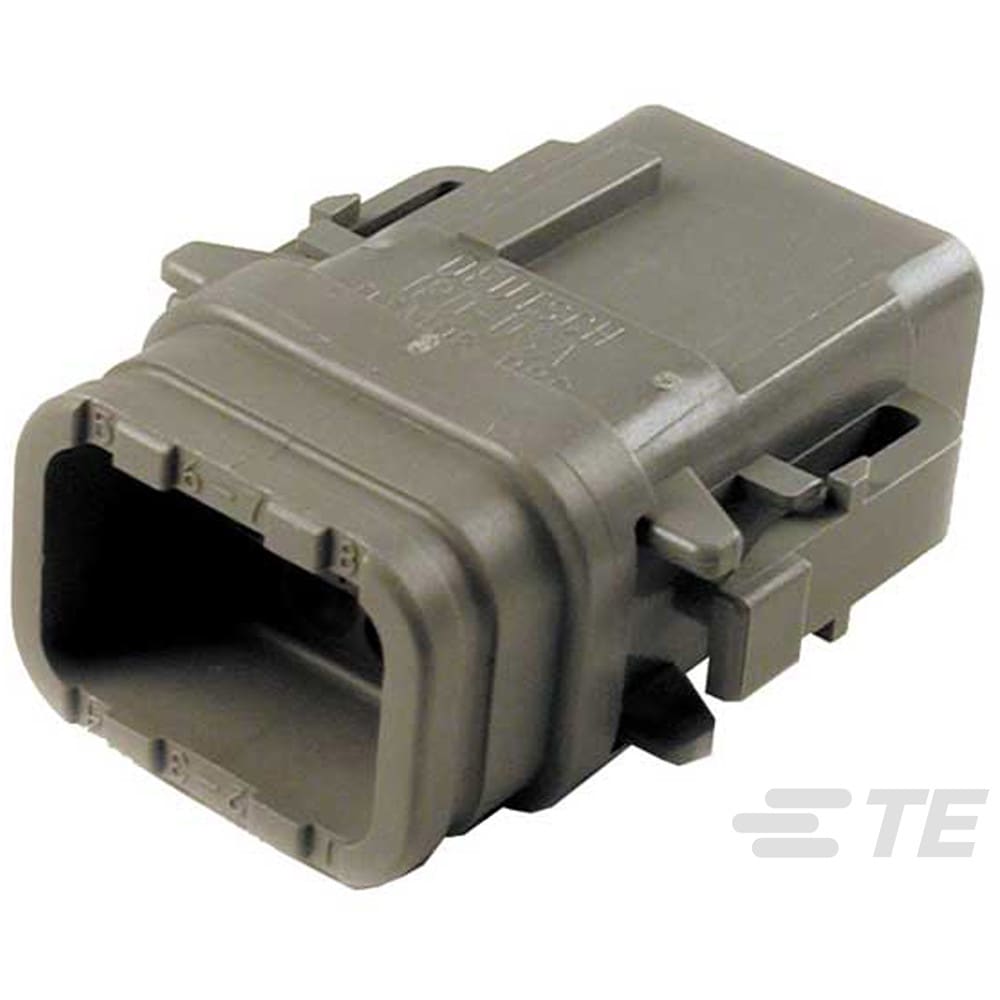

Plug, Housing for Female Terminals, Contacts 8, Gray, PA GF, DTM Series | TE Connectivity DTM06-08SA-E007
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DTM06-08SA-E007 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DTM06-08SA-E007
| Part Name | DTM06-08SA-E007 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 4 |
| Mounting Feature | Without |
| Width | 1.245 |
| Operating Voltage (V) | 250 |
| Connector Style | Housing for female terminals |
| Connector Position Assurance Capable | No |
| Number of Positions | 8 |
| Hybrid Connector | No |
| TE Internal Number | DTM06-08SA-E007 |
| Connector System | Wire-to-Wire |
| Number of Rows | 2 |
| Sealable | Yes |
| Terminal Position Assurance | No |
| Nominal Voltage Architecture (V) | 12 |
| Polarized | Yes |
| Operating Temperature Range | -55 – 125 |
| Degree of Protection | IP68 |
| Serviceable | Yes |
| Body Material | PA GF |
| Length | 30.1 |
| Strain Relief | Add By Accessory |
| Color | Gray |
| UL Flammability Rating | 20mm Flame Test per Standard UL-94 |
| Height | 15.24 |
| Contact Current Rating (Max) (A) | 7.5 |
| Primary Locking Feature | Integrated in Housing |
| Connector Code | A |
| Mating Pin Diameter | 1 |
| Cable Exit Angle | 180° |
