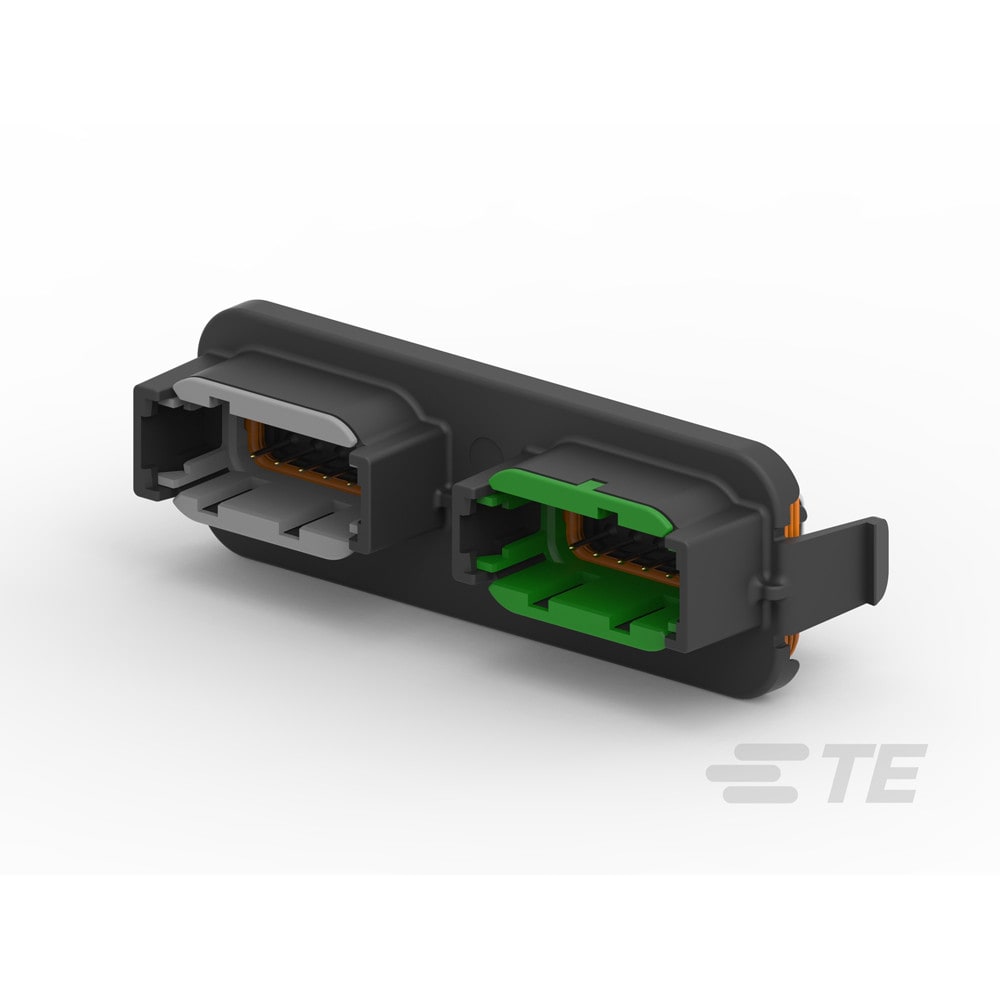

DTM1312PA12PCR008
Connector Header Panel Mount, Through Hole, Right Angle 24 position 0.165" (4.20mm)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DTM1312PA12PCR008 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

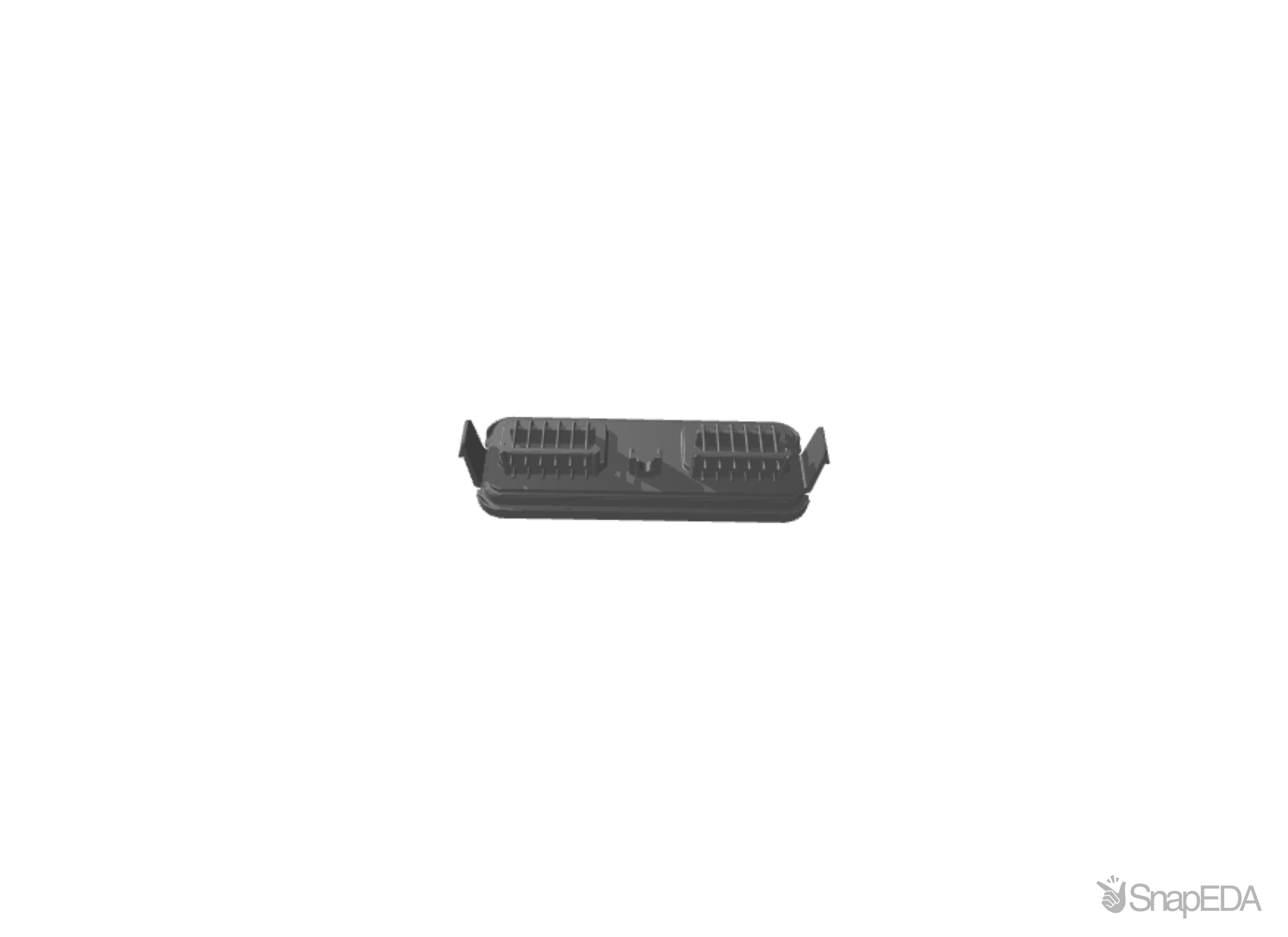

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DTM1312PA12PCR008
| Part Name | DTM1312PA12PCR008 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 4.2 |
| UL Flammability Rating | None |
| Width | 1.378 |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Solder Tail |
| PCB Mount Retention | With |
| Operating Temperature (Max) | 110 |
| TE Internal Number | DTM1312PA12PCR008 |
| Number of Positions | 24 |
| Connector System | Wire-to-Device |
| Shielded | Yes |
| Number of Rows | 2 |
| Voltage Rating (Max) (V) | 12 |
| Termination Method | Through Hole - Solder |
| Sealable | Yes |
| Number of Sections | 2 |
| Nominal Voltage Architecture (V) | 48 |
| Mounting Orientation | Horizontal/90 |
| Operating Temperature Range | -55 to 125 |
| Degree of Protection | IP67 |
| Mounting Holes | Without |
| Locking Interface | With |
| Packaging Quantity | 40 |
| Length | 101 |
| Pin Diameter | 1 |
| RoHS | True |
| Color | Black |
| Hybrid Header | No |
| PCB Mount Alignment | With |
| Packaging Type | Box |
| Panel Mount Feature | Without |
| Interface Plating | Tin (Sn) |
| Connector Code | C |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the DTM1312PA12PCR008 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
105 x $22.06
|
Visit Site | |
| TE Connectivity |
33
|
|
Visit Site |
No issues have been reported for the DTM1312PA12PCR008
If you experienced any issues with this part, please report it.
