DTS20Y09-35PN
Conn Circular PIN 6 POS Crimp ST Flange Mount 6 Terminal 1 Port
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the DTS20Y09-35PN by TE Connectivity / DEUTSCH and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

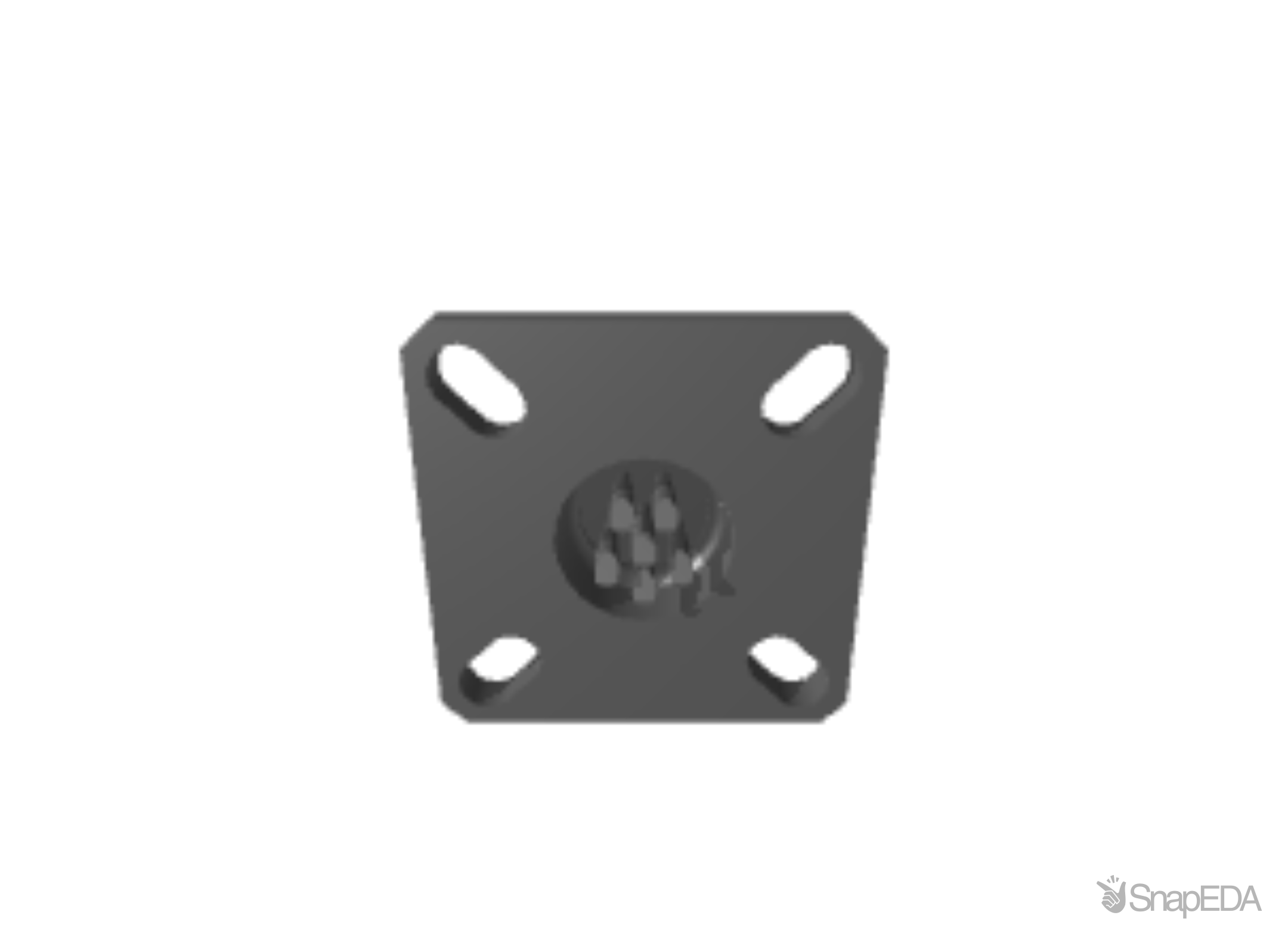

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the DTS20Y09-35PN
| Part Name | DTS20Y09-35PN |
| Manufacturer | TE Connectivity / DEUTSCH |
| Mating Alignment Type | Keyed |
| Keying | Keyway Polarization A |
| Shell Material | Stainless Steel |
| Circuit Application | Power |
| Alignment Keyed | Clocking |
| Flange | Solder Mount |
| Mating Retention | With |
| Contact Layout Arrangement | 9 35 |
| Environmental Protection | Yes |
| Operating Voltage (V) | 600 |
| Shell Size | B (11) |
| Connector Style | Receptacle |
| Preloaded | Yes |
| Environmental Protection Type | Hermetically Sealed |
| TE Internal Number | DTS20Y09-35PN |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Wire-to-Panel |
| Hermetically Sealed | Yes |
| Product Type | Connector |
| Connector Mounting Type | Panel |
| Operating Temperature Range | -85 to 392 |
| Shielded | Yes |
| Contact Quantity (Size 20) | 5 |
| Fluid Type | SEA-AMS1424 Type I |
| Peripheral Seal Material | Silicone |
| Fluid Resistance | Yes |
| Keying & Polarized Position Locations | A |
| Number of Positions | 6 |
| Packaging Quantity | 1 |
| Panel Mount Feature Type | Solder Mount |
| Assembly Length | 1.106 |
| RoHS | True |
| Polarization Code | A |
| Sealable | Yes |
| Shell Type | Solder Mount Receptacle |
| Mating Retention Type | Triple Start Threaded |
| Factory Installed Backshell | No |
| Panel Mount Feature | With |
| Voltage (V) | 1800 |
| Contact Type | Pin |
| Number of Power Positions | 6 |
| Position Locations Omitted | None |
| Insulation Material | Glass/Silicone |
| Feedthrough Type | No |
