E3T-ST11

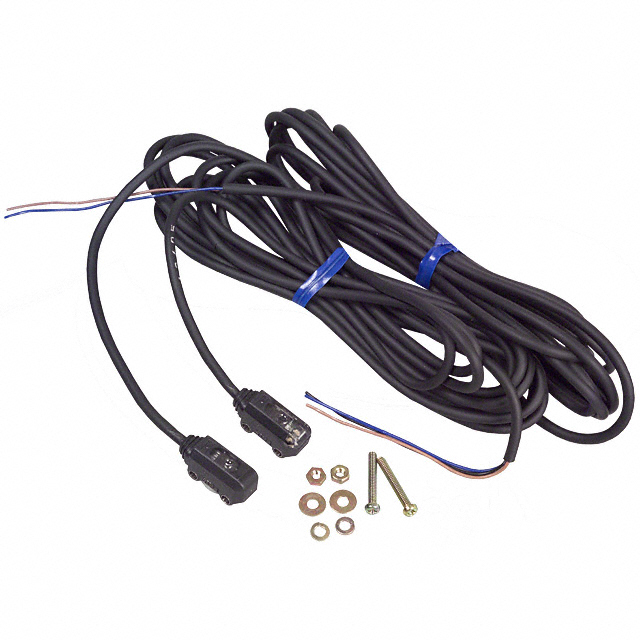

Photoelectric Thru-Beam Sensor Pair Rectangular Light Operate Visible Red 12-24VDC
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the E3T-ST11 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the E3T-ST11
| Part Name | E3T-ST11 |
| Manufacturer | Omron |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | E3T |
| Sensor Style | Block |
| Electrical Connection | Cable |
| Detection Type | Through Beam |
| Output Type | NPN |
| Detection Range | 1 m |
| Distrelec Product Id | 30222943 |
