EC2-5NU

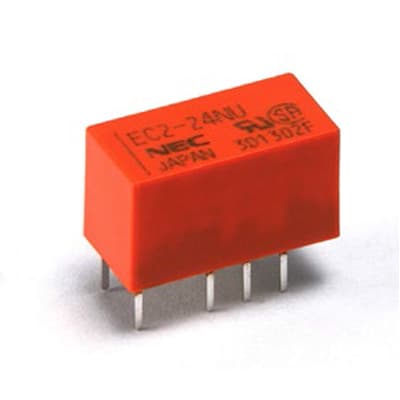

Relay, E-Mech, DPDT, Ctrl-V 5DC, 2A, 250VAC, PCB Mount, Through Hole, EC2 Series | KEMET EC2-5NU
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the EC2-5NU by Yageo and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

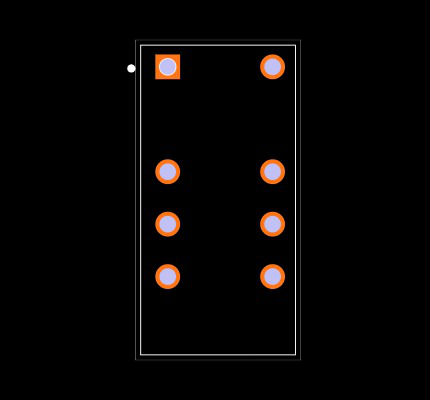

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the EC2-5NU
| Part Name | EC2-5NU |
| Manufacturer | KEMET |
| Category | Relays |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 15 x 7.5 x 9.4 (mm) |
| Maximum Switching Voltage Dc (V) | 220 (V dc) |
| Application | Electronic Switching Systems, PBX, Telecommunications, Terminal Equipment |
| Maximum Switching Power Dc | 60 W |
| Height | 9.4 (mm) |
| Coil Resistance | 178 (Ω) |
| Standards Met | CSA, UL Recognized E73266 |
| Coil Power | 140 (mW) |
| Isolation Coil To Contact | 1.5 (kV ac) |
| Maximum Switching Current Ac (A) | 2 A |
| Maximum Operating Temperature | +85 (°C) |
| Switching Current (A) | 2 (A) |
| Coil Voltage (V) | 5 (V dc) |
| Operating Temperature Range | -40 → +85 (°C) |
| Latching | No |
| Contact Configuration | DPDT |
| Maximum Switching Current Dc (A) | 2 A |
| Depth | 7.5 (mm) |
| Relay Switching Classification | Non-Latching Relay |
| Maximum Switching Voltage Ac (V) | 250 (V ac) |
| Maximum Switching Power Ac | 125 (VA) |
| Number Of Poles | 2 |
| Features | Compact and Lightweight, Low Magnetic Interference, Low Power Consumption |
| Mounting Type | PCB Mount |
| Series | EC2 |
| Length | 15 (mm) |
| Terminal Type | Through Hole |
| Minimum Operating Temperature | -40 (°C) |
| Contact Material | Gold Plated |
